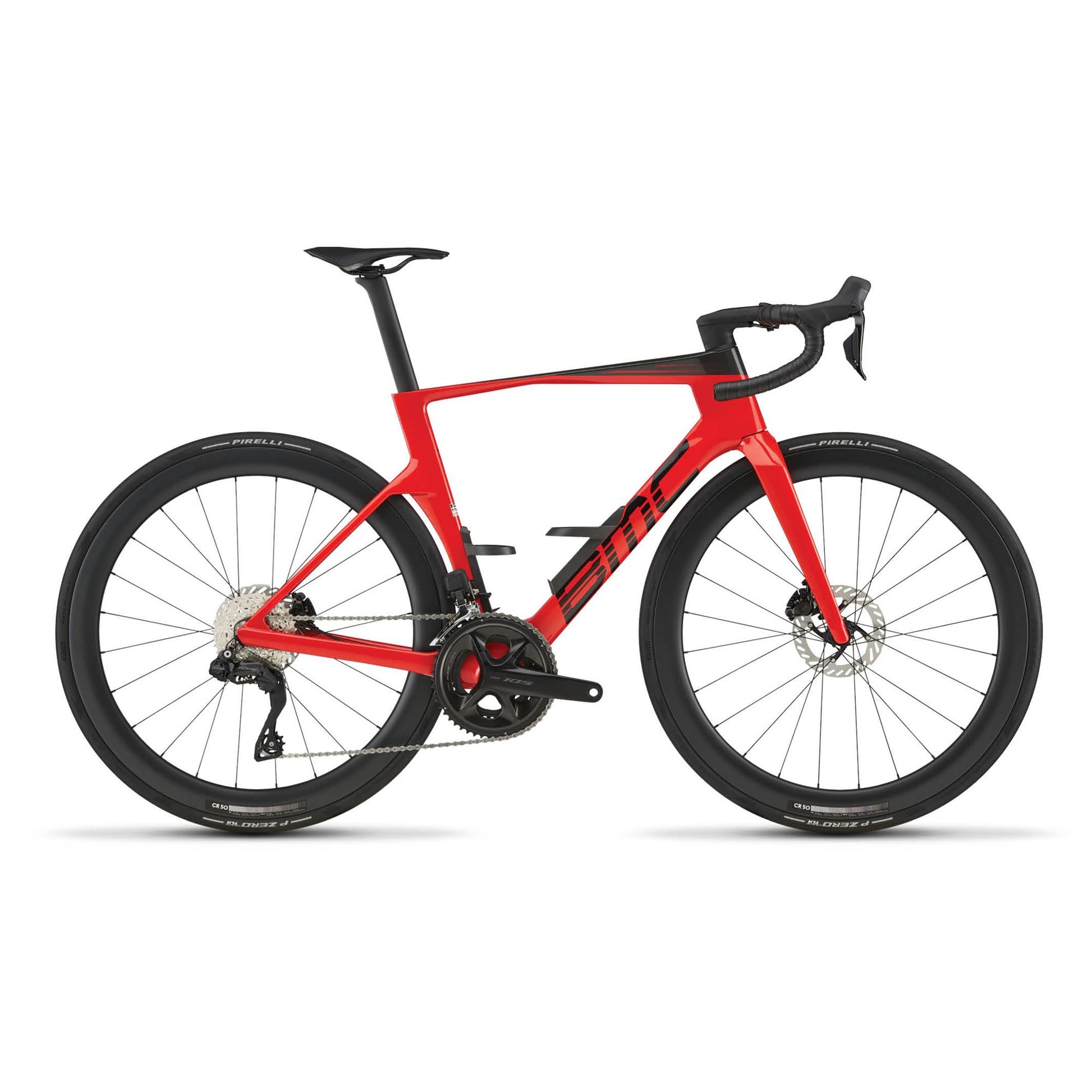

BMC Teammachine R 01 Five 105 Di2 2x12 2027

BMC:

The BMC Teammachine R 01 FIVE is a race-focused aero road bike built around the same elite platform developed with Red Bull Advanced Technologies. Its 01 Premium Carbon frame, Aerocore Design and ICS Technology stealth cable routing are combined with the distinctive wide-stance Halo fork to support aerodynamic efficiency, stability and speed-focused performance.

The build is completed with a Shimano 105 Di2 2x12 drivetrain, BMC ICS2 stem, alloy BMC handlebar and CR 50 Carbon tubeless-ready wheels, creating an accessible electronic-shifting specification on BMC’s fastest road bike platform.

Features

• 01 Premium Carbon frame with Aerocore Design
• Developed with Red Bull Advanced Technologies
• Halo fork with wide-stance aero design
• ICS Technology stealth cable routing
• Shimano 105 Di2 2x12 drivetrain
• BMC ICS2 integrated stem
• Alloy 6061 handlebar with race geometry
• CR 50 Carbon tubeless-ready wheels
• Pirelli P Zero Race TLR 28mm tubeless tyres
• Aerocore bottle cages included

Specifications

Frame: Teammachine R 01, 01 Premium Carbon with Aerocore Design, ICS Technology stealth cable routing, stealth dropout design, flat mount disc, 12 x 142mm thru-axle
Fork: Teammachine R 01, 01 Premium Carbon, ICS Technology stealth cable routing, stealth dropout design, flat mount disc, 12 x 100mm thru-axle
Stem: BMC ICS2, Integrated Cockpit System Technology
Handlebar: BMC HB D4 03, 0, 6, Alloy 6061, Race Geometry, 135mm drop, 70mm reach, 6° flare
Grips: BMC Tacky 3mm
Seatpost: Teammachine R 01, 01 Premium Carbon seatpost, 0mm offset size 47-51 and 10mm offset size 54-61
Saddle: Selle Italia SLR Advan, tubular steel rails, 145mm
Crankset: Shimano 105 FC-R7100
Chainrings: 52-36T
Cassette: Shimano CS-HG710
Cassette Size: 11-36T
Chain: Shimano CN-M6100
Front Derailleur: Shimano 105 Di2 FD-R7150
Rear Derailleur: Shimano 105 Di2 RD-R7150
Shifters: Shimano 105 Di2 ST-R7170
Gears: 2 x 12
Bottom Bracket: Shimano Press-Fit Bottom Bracket BB-RS500-PB
Brake Levers / Calipers: Shimano 105 BR-R7170
Rotors: Shimano 105 RT-CL700
Rotor Size: 160 / 160mm
Rims: CR 50 Carbon, tubeless ready, 50mm
Hubs: TXC-812 and TXC-240A Center Lock
Tyres: Pirelli P Zero Race TLR, tubeless, 28mm
Tubeless Information: Tubeless rim, tubeless tyres
In The Box: Aerocore bottle cages, high and low ICS top cones, 3 x 10mm spacers, 2 x 3mm spacers
Tyre Clearance: 30mm measured tyre
Weight Without Pedals: 8.0kg, size 54
ASTM Classification: Level 1
System Weight Limit: 110kg
