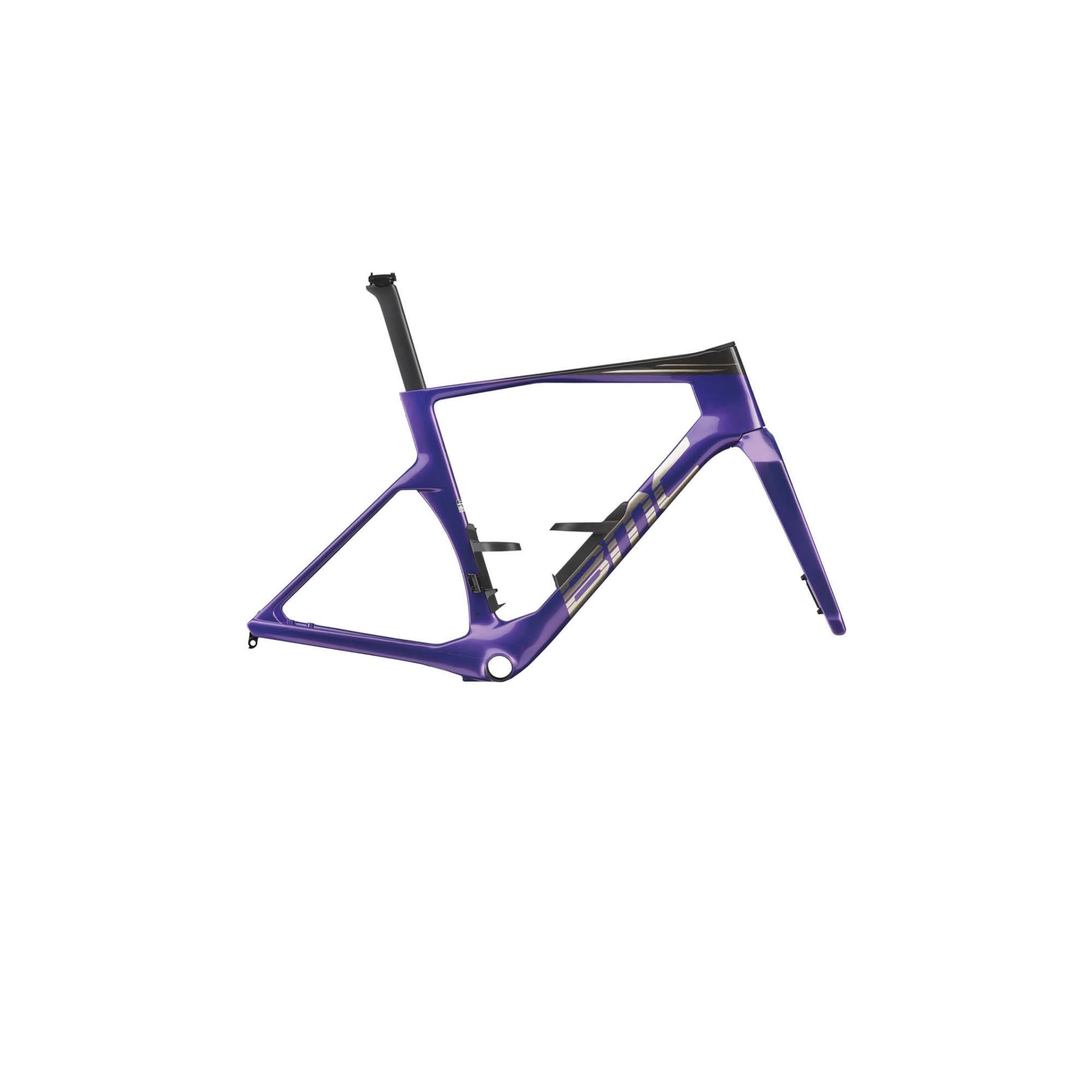

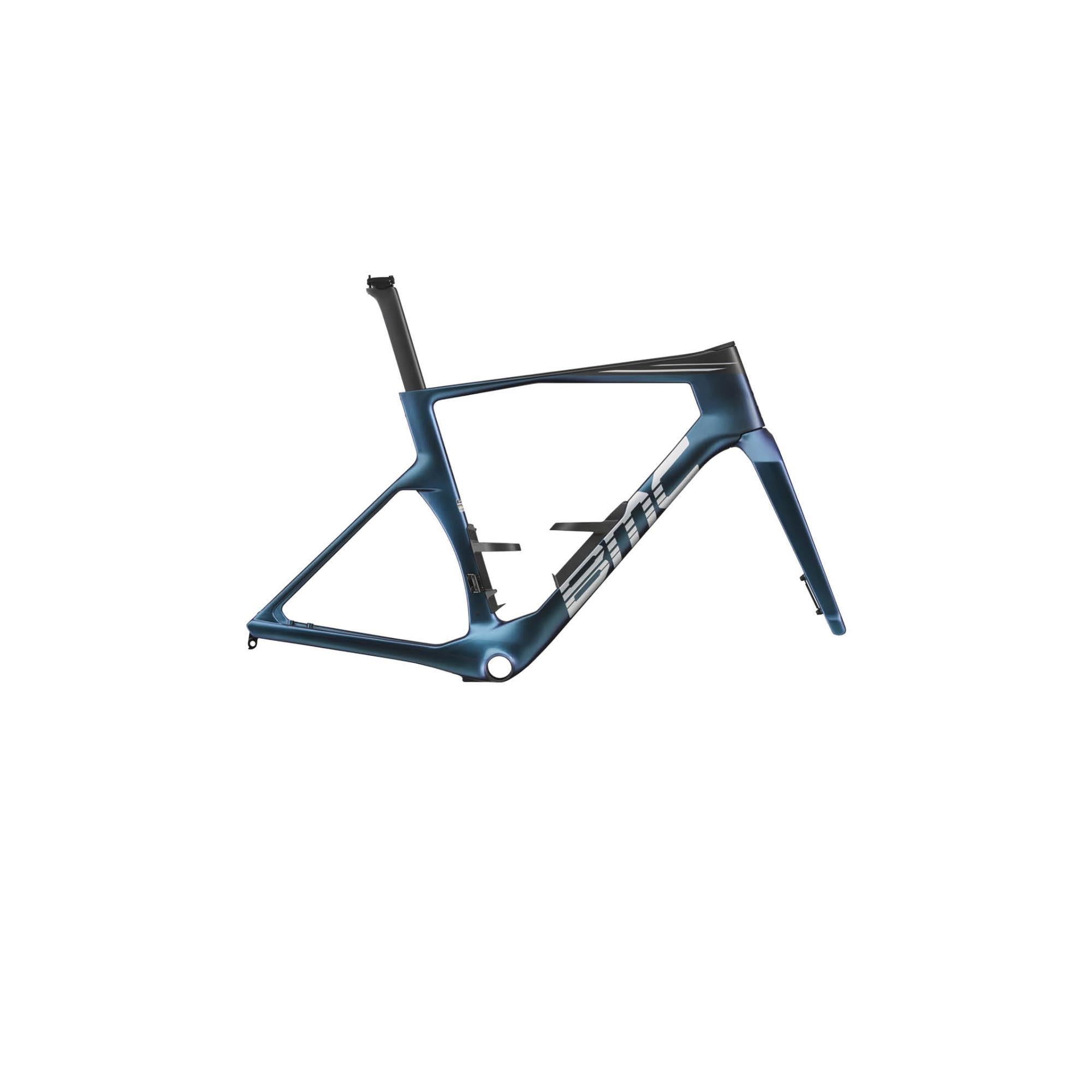

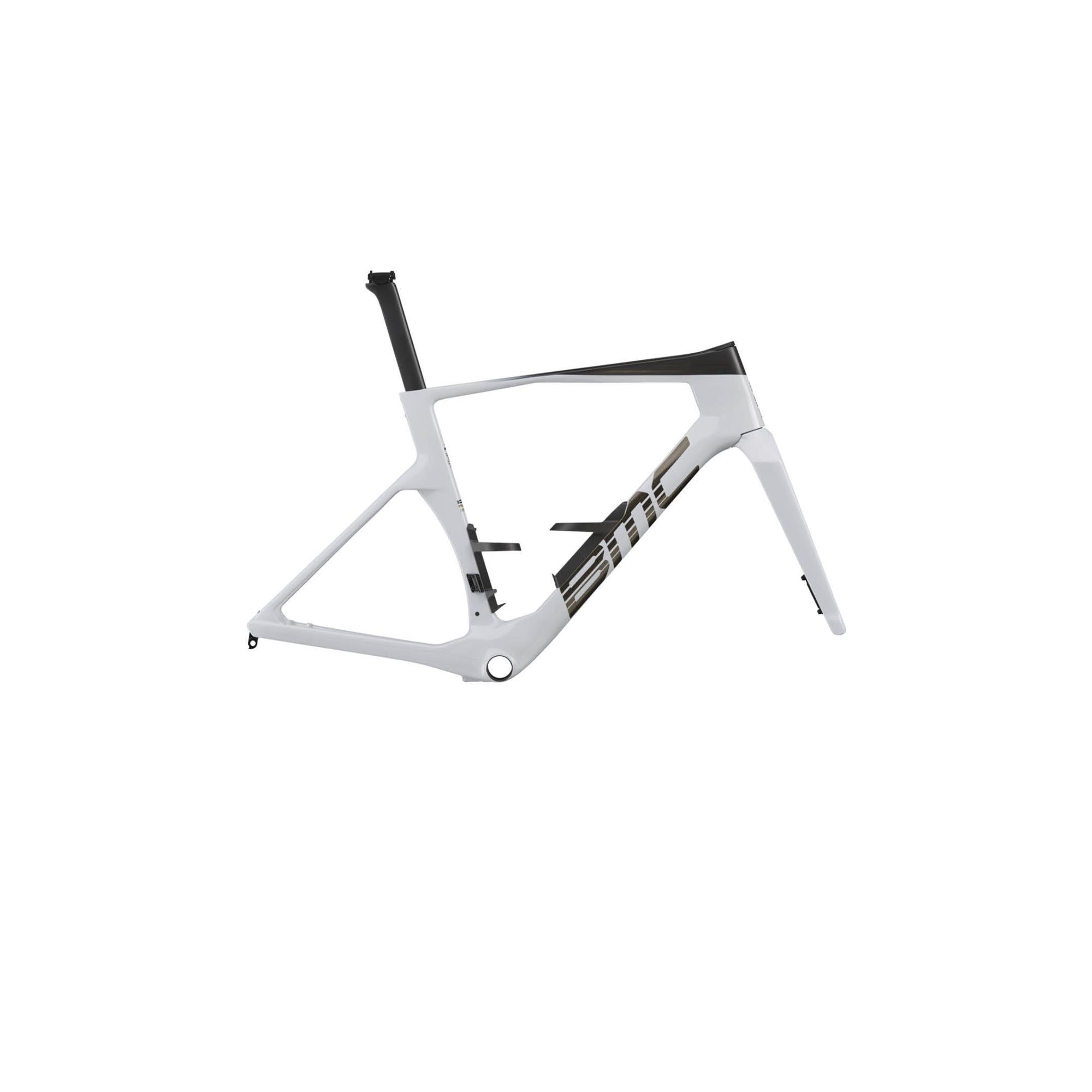

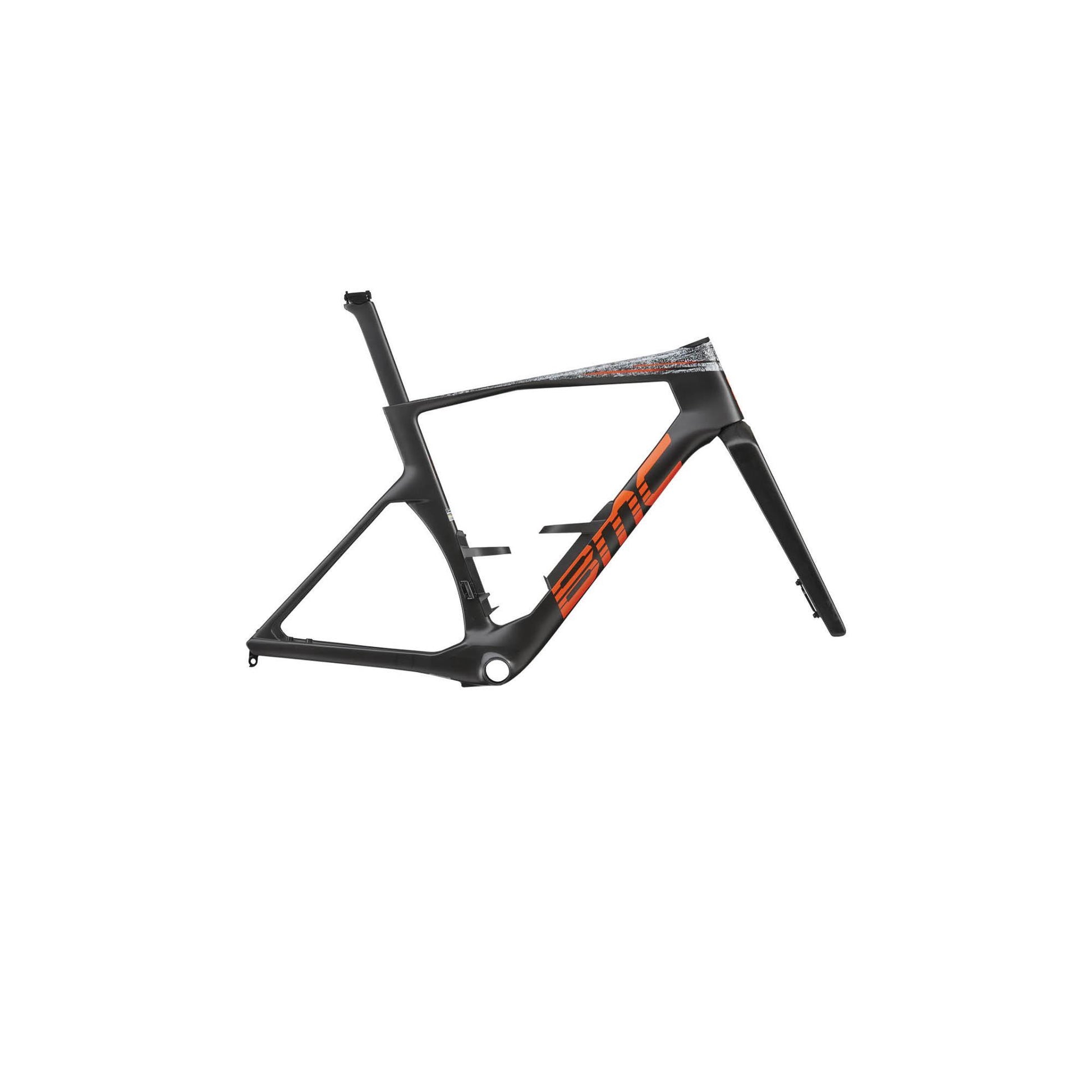

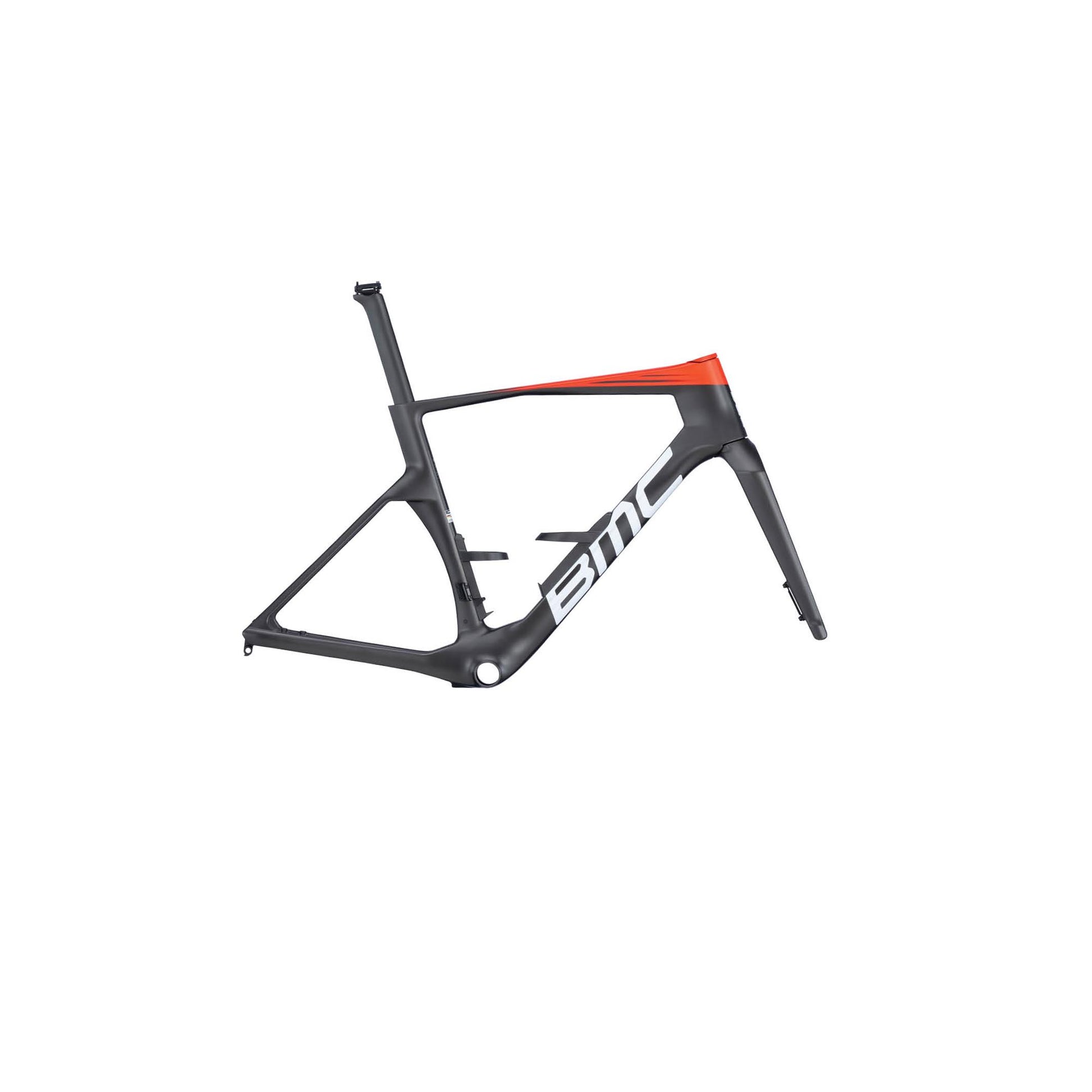

BMC Teammachine R 01 Frameset 2027

BMC:

The BMC Teammachine R 01 Frameset is a premium aero road platform built for riders creating a custom race bike around BMC’s fastest road chassis. Developed with Red Bull Advanced Technologies, it combines 01 Premium Carbon construction, Aerocore Design, ICS Technology stealth cable routing and the distinctive Halo fork to support aerodynamic efficiency, stability and speed-focused performance.

The frameset package includes the frame, fork, premium carbon seatpost, Aerocore bottle cages and key fitment hardware, giving riders the foundation for a tailored high-performance build.

Features

• 01 Premium Carbon frame with Aerocore Design
• Developed with Red Bull Advanced Technologies
• Halo fork with wide-stance aero design
• ICS Technology stealth cable routing
• Stealth dropout design
• Flat mount disc brake standard
• Premium Carbon seatpost included
• Shimano Direct Mount and standard Shimano/SRAM derailleur hangers included
• High and low ICS top cones and spacers included
• 30mm measured tyre clearance

Specifications

Frame: Teammachine R 01, 01 Premium Carbon with Aerocore Design, ICS Technology stealth cable routing, stealth dropout design, flat mount disc, 12 x 142mm thru-axle
Fork: Teammachine R 01, 01 Premium Carbon, ICS Technology stealth cable routing, stealth dropout design, flat mount disc, 12 x 100mm thru-axle
Seatpost: Teammachine R 01, 01 Premium Carbon seatpost, 0mm offset size 47-51 and 10mm offset size 54-61
Front Derailleur: Riveted derailleur hanger for front derailleur, 2x drivetrain, 44.5mm chainline
Rear Derailleur: BMC derailleur hangers, Shimano Direct Mount and Shimano or SRAM Direct Attachment standard
Bottom Bracket: Press-Fit 86.5mm Road
Rotor Compatibility: 160mm front, 140mm or 160mm rear
In The Box: Aerocore bottle cages, Shimano Direct Mount derailleur hanger, classic SRAM/Shimano derailleur hanger, high and low ICS top cones, 3 x 10mm spacers, 2 x 3mm spacers
Tyre Clearance: 30mm measured tyre
Weight Without Pedals: 1805g, size 54
ASTM Classification: Level 1
System Weight Limit: 110kg
