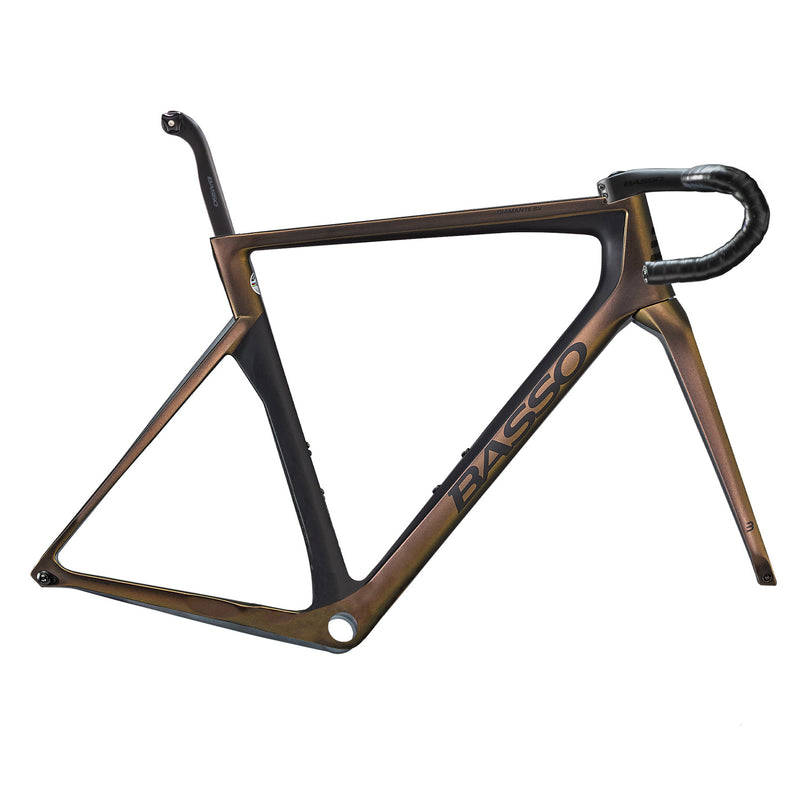

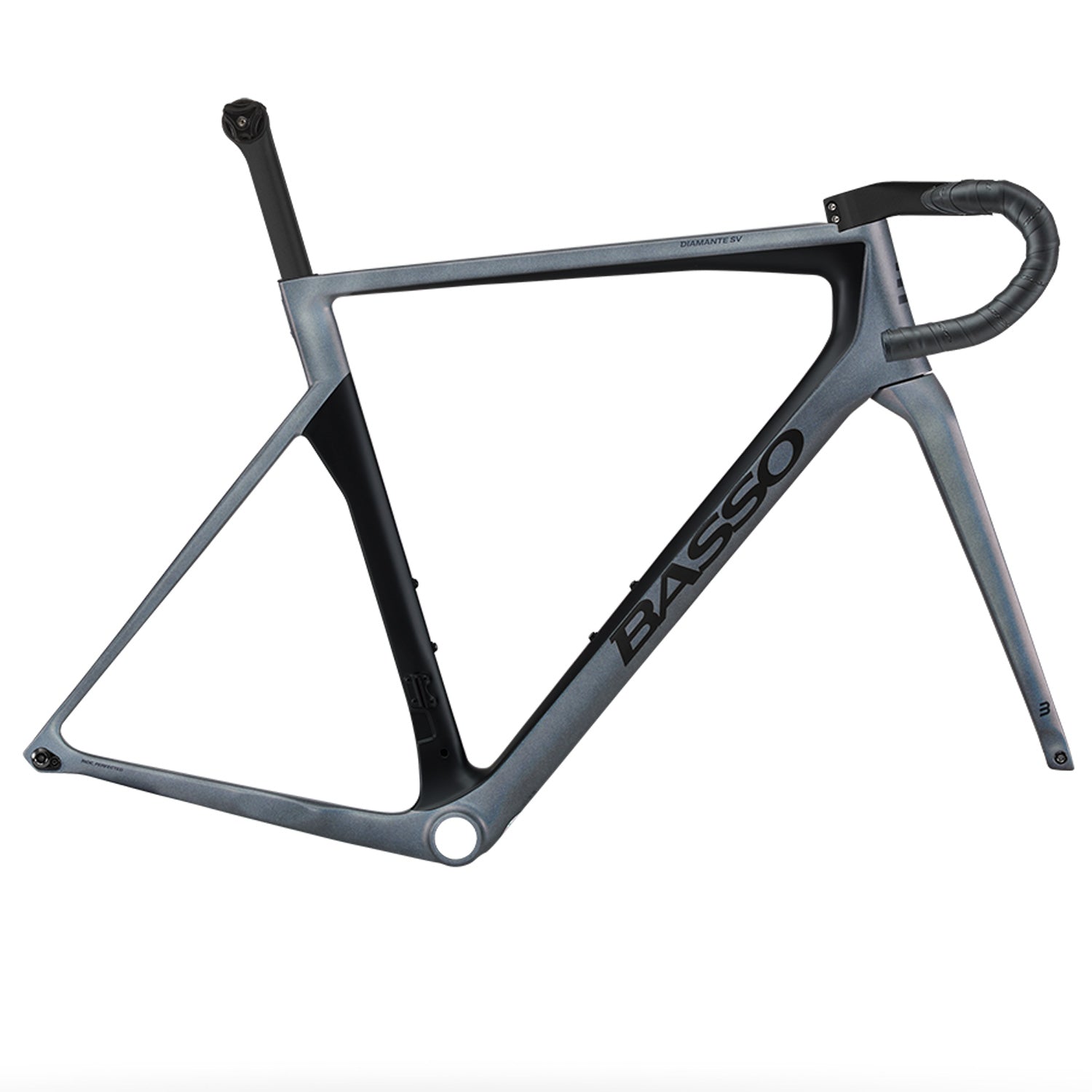

Diamante SV Frameset

Built on the success of the award-winning and universally acclaimed Diamante, the Diamante SV is engineered to be not only stiffer but more SV — Super Veloce and Super Versatile. This frameset represents a seamless fusion of refined craftsmanship and innovative tube shapes, resulting in a timeless, aero-orientated, UCI Approved road racing bike.

Aerodynamically profiled tubes and enhanced stiffness elevate this frameset to an elite standard. Performance improvements go hand-in-hand with broadened versatility, achieved through a redesigned fork, an exceptionally efficient rear triangle, and expanded tyre clearance. Every aspect, from the carbon layup to the tube dimensions, has been meticulously adjusted across the range to ensure a perfected riding experience for every cyclist.

Technology

Windshape: Every tube has been shaped to minimize aerodynamic drag, allowing the rider to move forward faster and with less effort.

Performance Fork Design: Vertically compliant yet horizontally rigid, this design confers unique handling precision and comfort even on rougher surfaces.

Rear Triangle Efficiency: Features lower profile stays to maximize rear triangle reactiveness and power transfer.

Integrated Levita Handlebar: Redefines riding precision with a blend of stiffness, lightweight construction, and outstanding ergonomics for aesthetic purity and control.

3B Clamp System Gen 2: A hidden seatpost fixing solution that is invisible on the frame. This lightweight, integrated clamping solution offers an anti-vibration function, significantly elevating comfort on uneven and bumpy surfaces.

Frame Specifications:

• Compatible with Electronic and Mechanical groupsets
• Cable Integration: Fully Integrated
• Brakes: Flat Mount Disc
• Bottom Bracket: BB86 86.5 x 41
• Headset: Fully Integrated
• Tyre Clearance: Up to 32mm
• Thru Axles: 100/142mm x 12mm (125x165mm)
• Frame Weight: 820g
• Fork Weight: 400g
• Warranty: Covered under Basso's 2 Year warranty
• Made in Italy
