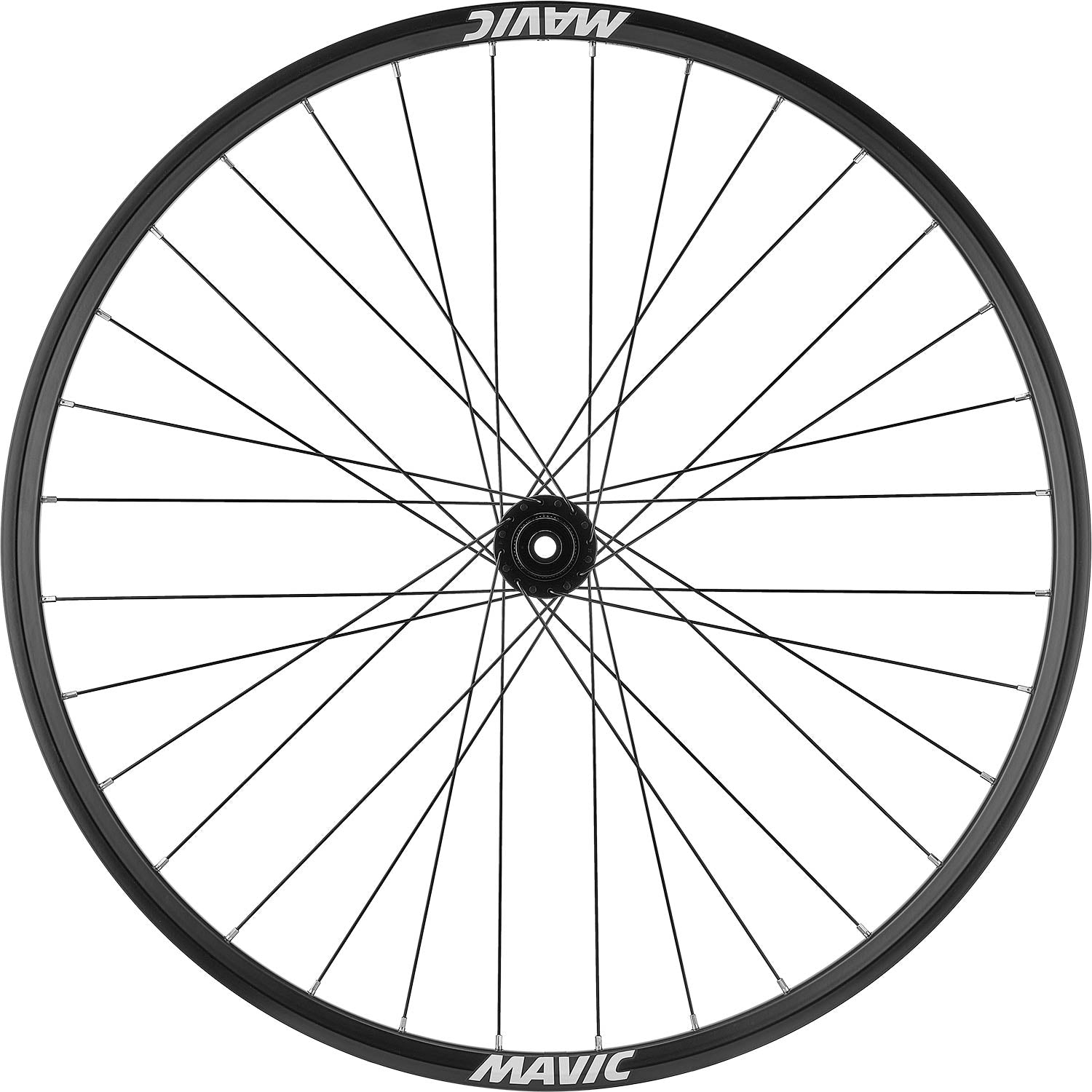

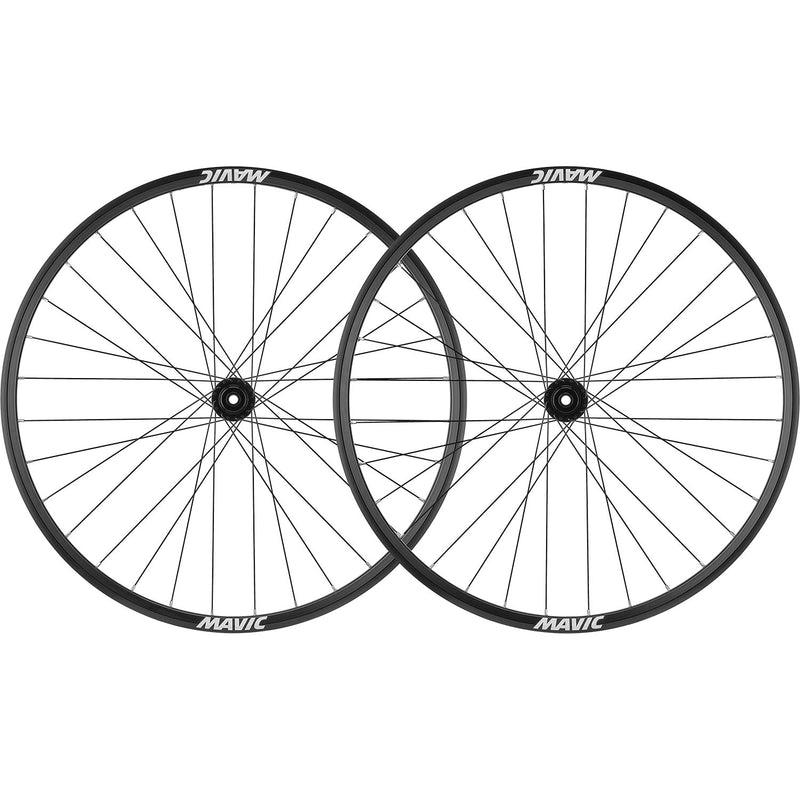

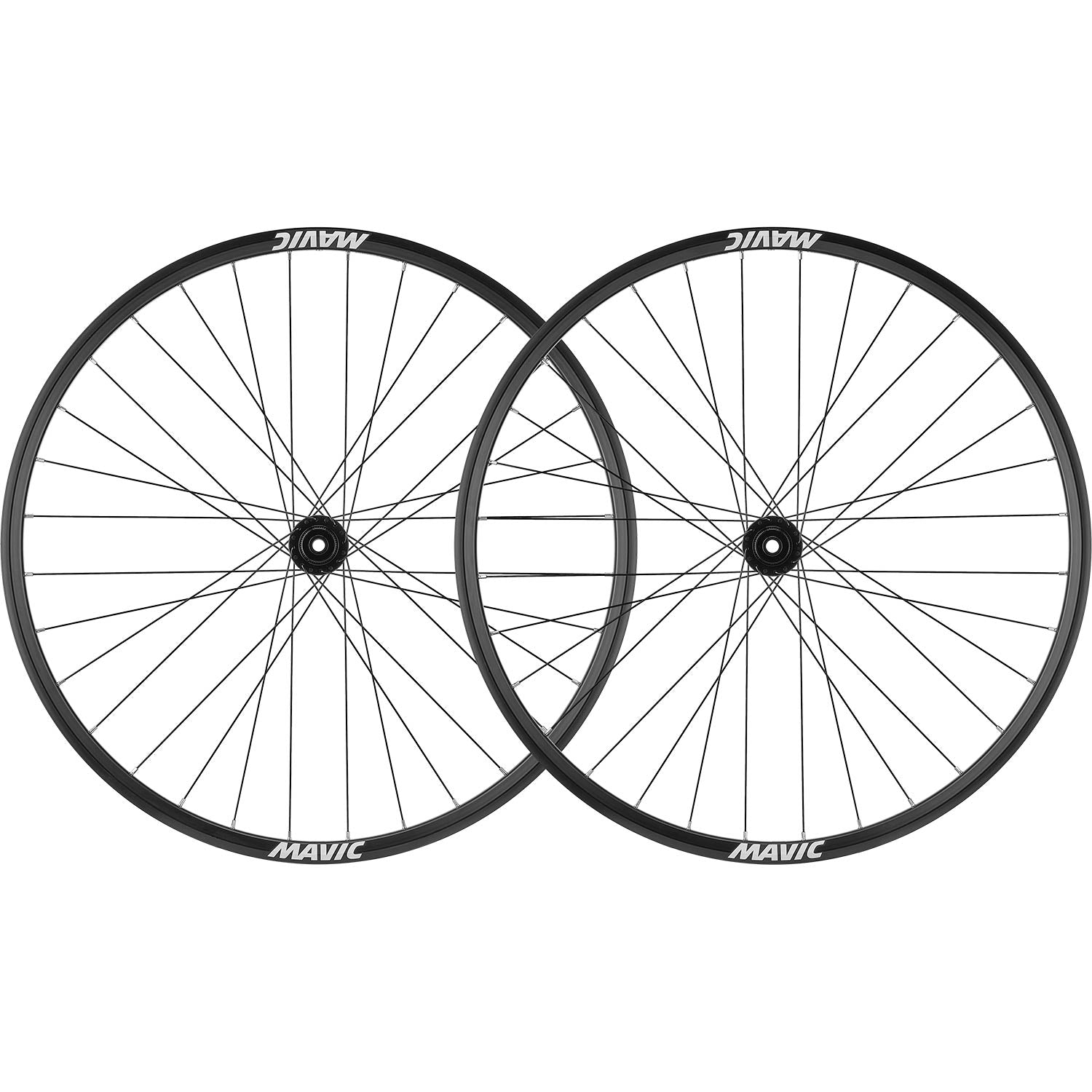

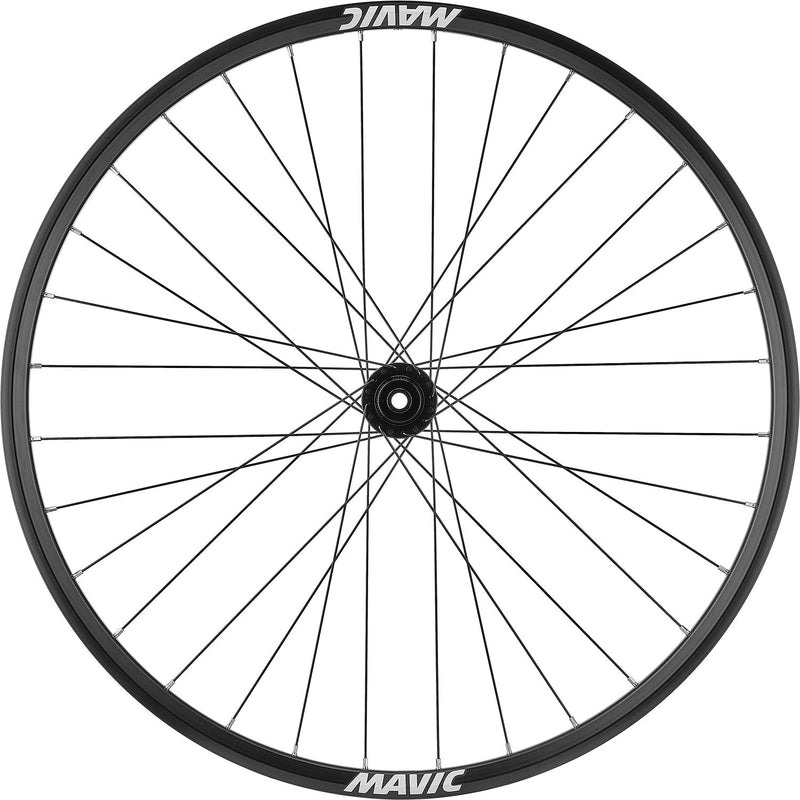

E-Access XR22 29 Centre Lock QR Disc

Quick release version. Affordable, reliable and built to handle the unique demands of e-bikes, the E-ACCESS XR22 draws on Mavic's proven expertise to deliver a wheel that's ready for E-gravel, E-road and E-urban riding.

Designed to support the added weight and torque of electric bikes, it offers dependable performance across varied terrain and conditions. Sealed bearings and tough aluminium rims ensure long-term durability, making it a trustworthy companion for daily commutes, weekend escapes and everything in between.

Technical Specifications:

• Inner rim width: 22mm
• Front axle: 12 x 100mm
• Rear axle: 12 x 142mm
• Discipline: Road
• Spokes: Steel, J-Bend
• Rim Diameter: 700c
• Nipples: Steel, ABS
• Rim material: Aluminium
• Tyre compatibility: Tubetype and Tubeless Ready
• Maximum weight: 135kg including bike
• Bearings: Aluminium
• ETRTO Size: 622x27TC
• Weight Pair: 2350g
• Weight Front: 1070g
• Weight Rear: 1280g

What's in the box?

• Wheelset
• User guide
• Rim Strip mounted on wheel

Intended Use

• Minimum tyre size: width 28mm - pressure max. 4.1Bar/59PSI
• Maximum tyre size: width 64mm - pressure max. 2.4Bar/36PSI
• ASTM category 3: Rough off-road trails, unpaved roads and technical paths requiring skills and allowing for jumps and drops up to 61cm

Understanding the different Mavic freehub body acronyms:

• HG or M11 - Shimano HG Road 11/12x (other speeds with spacer)
• MS - Shimano Microspline
• XD - SRAM XD
• XD-R - SRAM XD-R
• ED11 - Campagnolo 9/12x
• N3W - Campagnolo 13x

Meets the unique demands of E-BIKES

• Get access to all the Mavic know-how, with this reliable and versatile wheel that will accompany you on all your E-Bike outings.

Durability

• With its sealed bearings and highly resistant aluminium rims, this wheel will last for all your cycling adventures.
