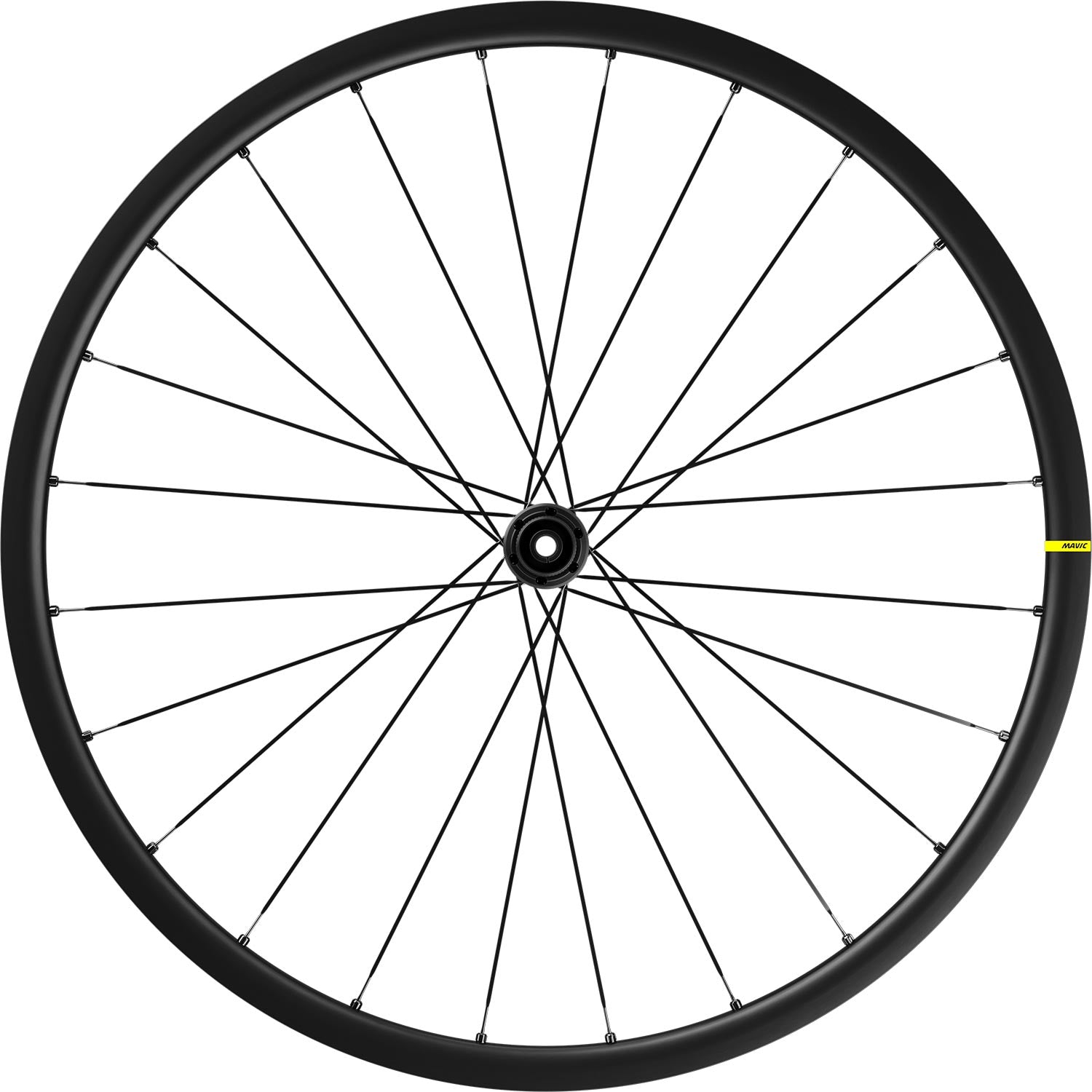

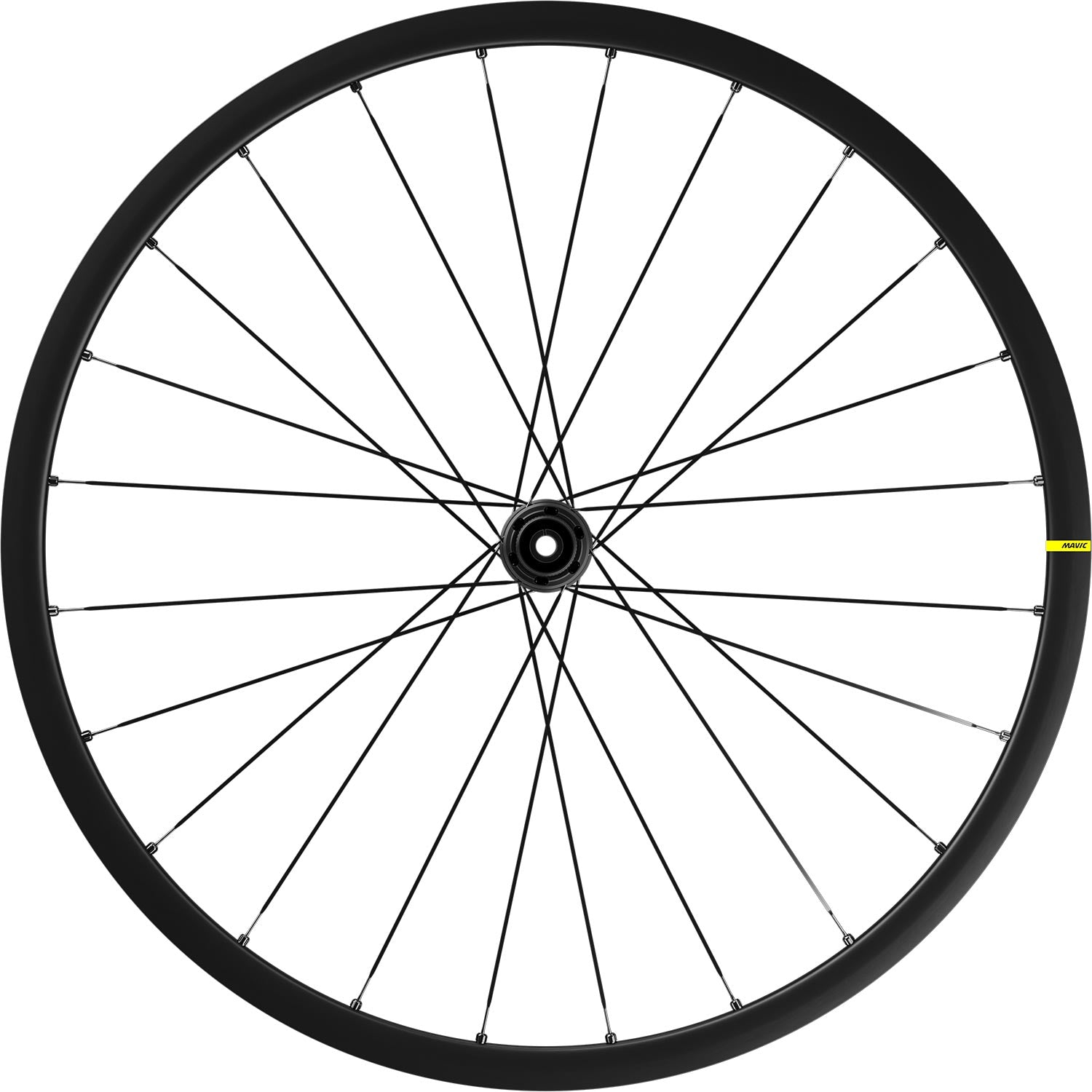

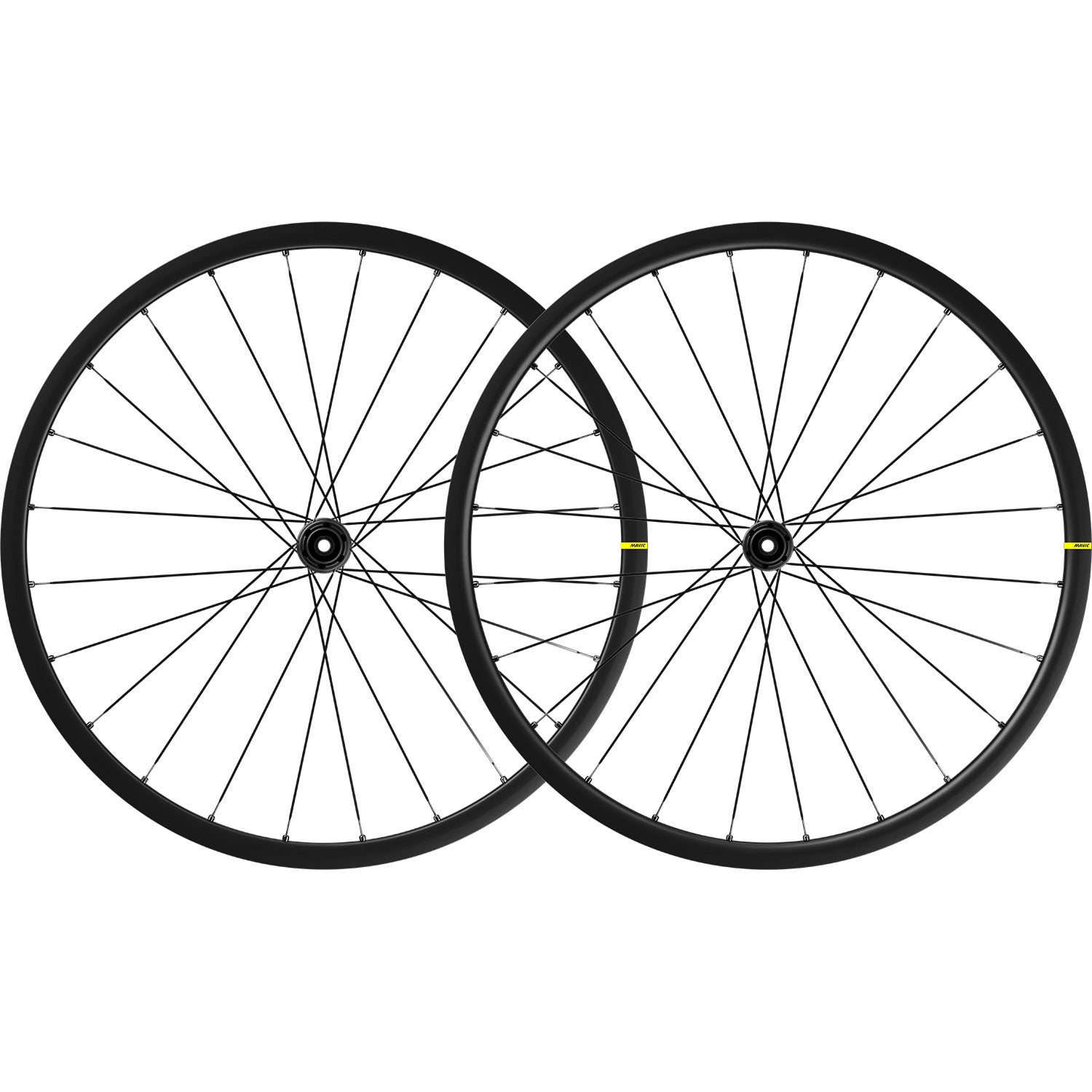

Ksyrium S Centre Lock Disc

Trusted Mavic technologies and design, all packaged in a lightweight, durable wheelset with a stunning finish, make this a smart upgrade for any road rider.

Lightweight aluminium wheelset and an easy, high‑value upgrade from OEM wheels. It’s 40 g lighter than the previous Ksyrium UST Disc while offering greater strength and lateral stiffness using Fore technology and an undrilled upper bridge. The UST Tubeless rim bed improves rolling resistance, grip and puncture protection, and the new rim shape makes tyre fitting simpler. Rims are made in France.

Technical Specifications:

• Profile depth: 22mm
• Inner width: 19mm
• Front axle: 12x100mm
• Rear axle: 12x142mm
• Discipline: Road
• Spokes: Stainless Steel, Straight
• Rim Diameter: 700c
• Nipples: Brass, Black
• Rim material: Maxtal Aluminium alloy
• Tyre compatibility: UST Tubeless Ready
• Maximum weight: 120kg including bike
• Bearings: Aluminium
• ETRTO Size: 622x19TC
• Pair Weight: 1670g
• Weight Front: 750g
• Weight Rear: 920g

Understanding the different Mavic freehub body acronyms:

• HG or M11 - Shimano HG Road 11/12x (other speeds with spacer)
• MS - Shimano Microspline
• XD - SRAM XD
• XD-R - SRAM XD-R
• ED11 - Campagnolo 9/12x
• N3W - Campagnolo 13x

Lightweight and durable for everyday performance

• Rim weighs only 430g
• No rim tape is needed, saving 60g over a traditional wheelset
• Flat, lightweight spokes and ID360 freewheel technology

Laterally stiff and vertically compliant for a more dynamic ride

• Fore technology keeps the rim upper bridge solid to make the 19mm wide rim stiffer
• New Infinity hub plaform: stiff axle, durable bearings and new hub design

Improved UST Road delivers more speed, comfort and control in an easy to use tubeless system

• No tubes means less friction, better efficiency and grip, a reduced risk of punctures
• New rim bed shape makes it easier to mount and change tyres
• Fore drilling technology doesn't require the use of rim tape
