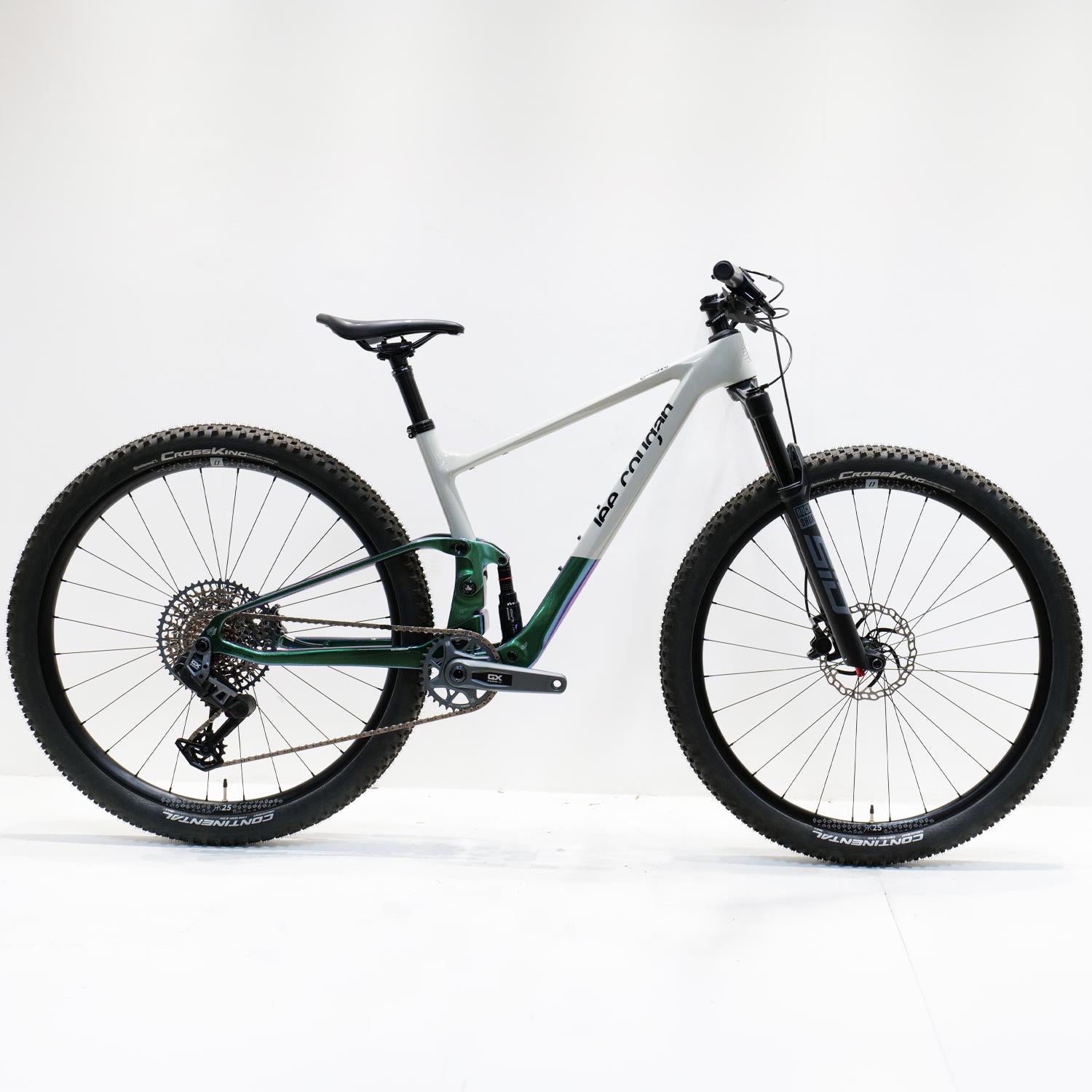

Lee Cougan Crossfire Trail Medium Ex Demo Bike

This is an Ex-demo bike and therefore shows signs of use, please see pictures for details.

The Lee Cougan Crossfire Trail is built for riders who want more than a pure race machine. With 120mm of rear travel, an advanced carbon construction using Torayca T1000 and T800 fibres, and a frame weight of just 1,850g in size M, it covers everything from competitive cross-country to weekend trail rides without compromise.

The geometry tells the real story. A 67.5 degree head tube angle, long reach, short chain stays at 430mm across all sizes, and a steep 75.5 degree seat tube angle give the Crossfire Trail the planted, confidence-inspiring feel of a trail bike while retaining the pedalling efficiency you need for long climbs and race efforts. The Structural Crossbar System places the rear shock vertically, using it as an integral structural element ahead of the bottom bracket to deliver class-leading torsional stiffness and a low centre of gravity - all without adding weight.

Hollow CNC-machined alloy axles at the main and centre pivots, paired with oversized bearings, keep the rear triangle torsionally rigid and precise under load. Tyre clearance runs to 2.4" with a 30mm internal rim width, giving you real muddy-day capability.

Frame Specs:

• Cable Integration: Semi Integrated
• Brakes: Flat Mount Disc
• Frame: full carbon, Torayca T1000 and T800 fibres
• Frame weight: 1,850g (frame and shock, size M)
• Rear travel: 120mm
• Head tube angle: 67.5 degrees (S/M)
• Seat tube angle: 75.5 degrees (S/M)
• Chain stay length: 430mm (all sizes)
• BB height: 330mm (all sizes)
• Reach: 438mm (M)
• Stack: 588mm (S/M)
• Wheelbase: 1140.3mm (M)
• Tyre clearance: up to 2.4" with 30mm internal rim width

• Structural Crossbar System (S.C.S.):  Vertically mounted rear shock acts as a structural crossbar ahead of the bottom bracket for maximum torsional stiffness
• Advanced carbon construction using Torayca T1000 and T800 fibres for an optimised balance of stiffness, compliance, and low weight
• Hollow CNC alloy axles with oversized bearings at main and centre pivots for a precise, stiff rear triangle
• Long reach geometry with 67.5 degree head tube angle and short 430mm chain stays across all sizes
• 120mm rear travel with excellent pedal efficiency
• Tyre clearance up to 2.4" with a 30mm internal rim width, with mud clearance in reserve
• Three bottle cage mounts:  room for two water bottles on longer adventures
• Steerer tube multi-tool (Granite Design x Lee Cougan) with mini ratchet wrench and 9 tools included
