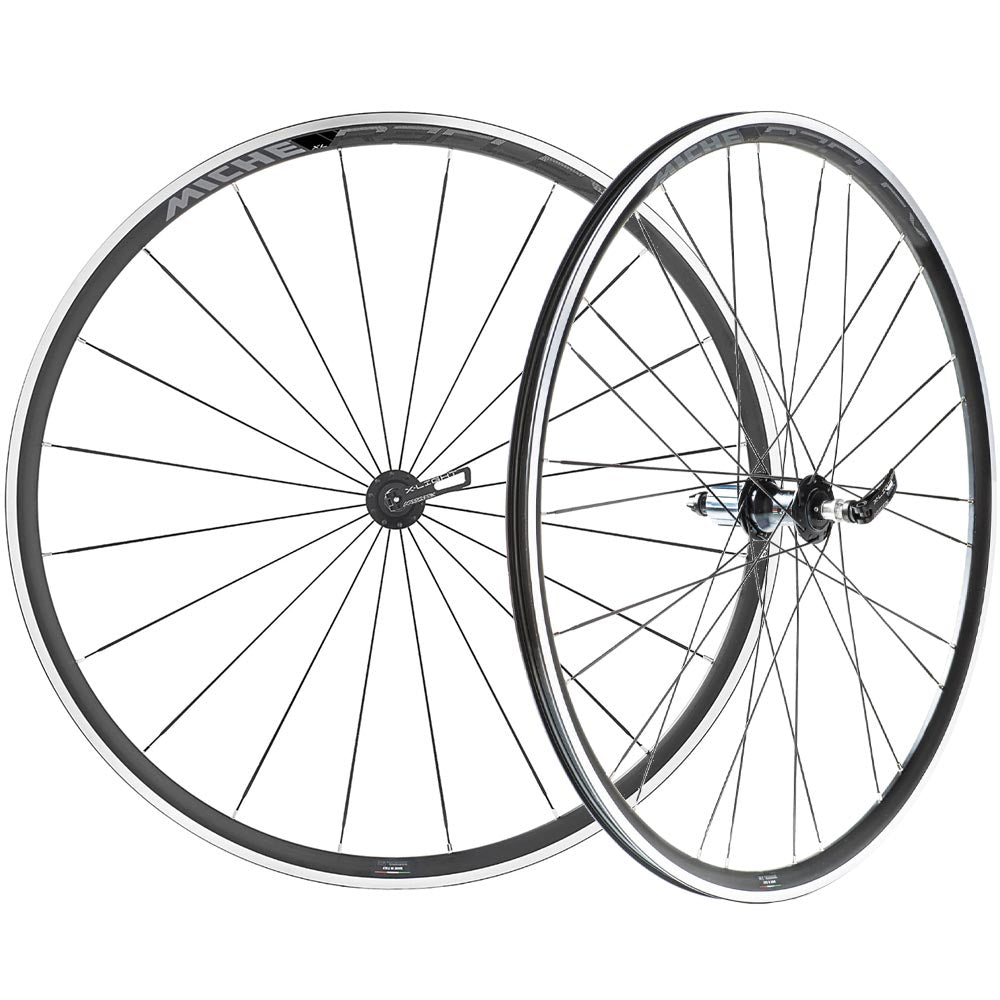

Reflex XL Wheels

Reflex wheels program offers wheels sets ideal for everyday use. They are developed and built with aluminum rims, with light-alloy CNC machined hubs bodies and high-smoothness bearings to ensure maximum smoothness and a long life running.

Optimised rims

Anodized alloy rims with a 17C section optimized for use with tires from 23mm to 32mm, CNC machined for perfect parallelism of the braking areas.

Smooth hubs

Alloy hubs, forged and CNC machined. Rear hub smoothness can be easily adjusted through a special ring, even with the wheel mounted, same as for the higher range wheels.

Technical Specifications

• Weight: 2056g
• Braking system: Rim Brake
• Hub material: Forged Aluminium
• Bearings: Miche Seale Bearings
• Compatibility: Ca, Sh
• Front and rear Axle: 9 - 10mm
• Rims: Aluminium
• Spokes: Stainless steel, flat-conic, J-bend
• Nipples: Brass
• Rim dimension: 622x17
• Rim inner width: 17mm
• Tyre type: Clincher
• Max weight bike + user: 120kg

What's in the box?

• Wheelset
• Instructions
