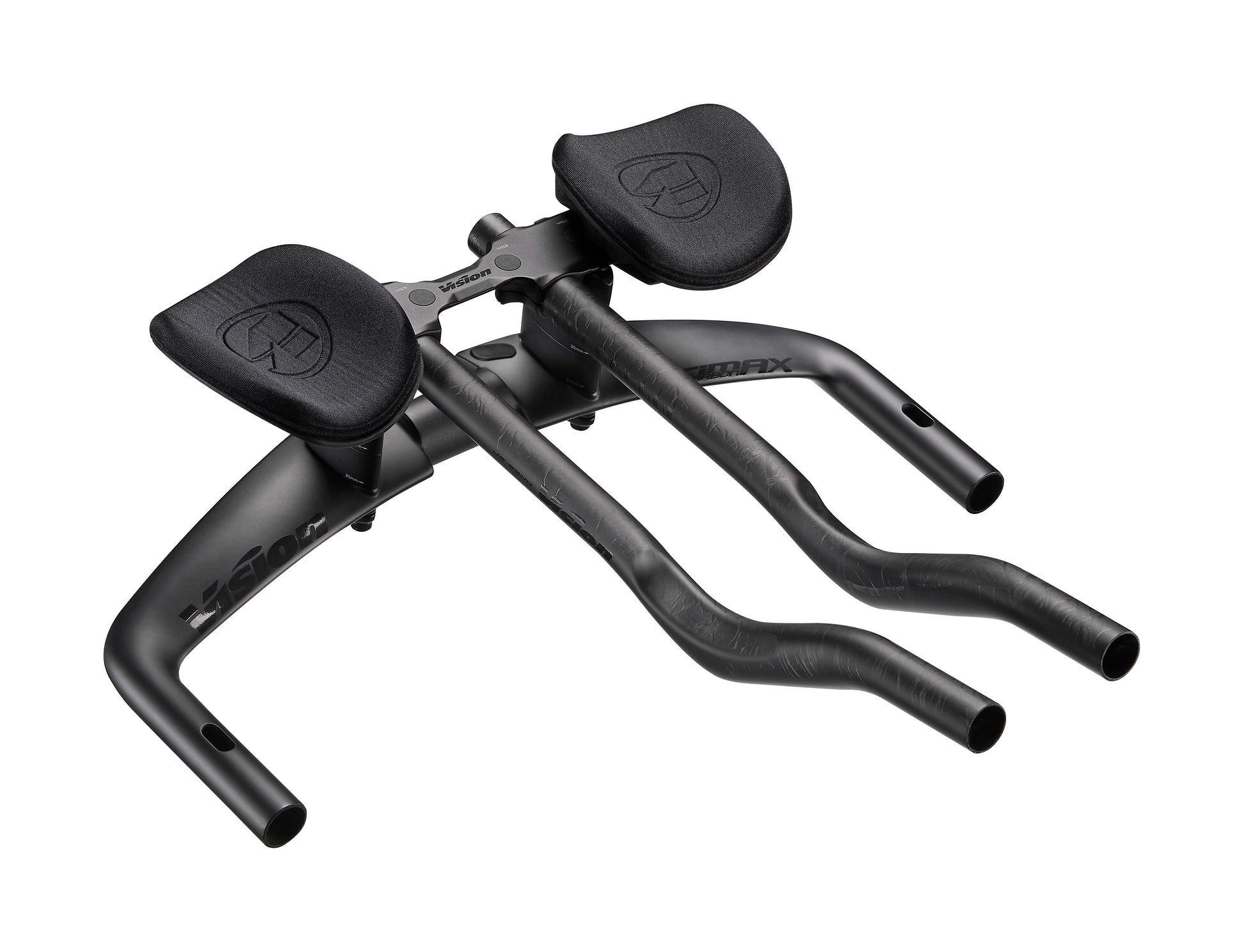

Trimax Carbon Si-013 JS-Bend B3 V22 TT/TRI
- Regular price
- £739.99
- Sale price
- £739.99
- Regular price
-
Tax included.
Shipping calculated at checkout.
- Highly adjustable and customizable semi-integrated design.
- Lightweight carbon wing and extension.
- Internal cable routing and Di2 compatible.
- Forged AL6061/T6 brackets and hardware.
- Composite armrests with low profile ergonomic pads.
- JS-Bend extension.
- UD carbon finish.
- Weight: 1,130g.
| Dimensions | |
|---|---|
| 01. Stack | 70 to 145mm (bottom of stem at centre of top of uncompressed pad - 5mm increments) |
| 02. Reach | 16.5 to 106.5mm (centre of Base bar to rear edge of armrest - l7.5mm increments) |
| 03. Armrest Width | 210 to 360mm (outside-to-outside - 15mm increments) |
| 04. Extension Adjustment | 245 to 385mm (centre of base bar to tip) |
| 05. Extension Length | 412mm |
| 06. Extension Height | 60mm (c-c) |
| 07. Extension Angle | 35° (12° at extension tip) |
| 08. Extension Width | 80mm (c-c) |
| 09. Base Bar Width | 400mm (c-c) |
| 10. Bae Bar Drop | ±25mm (c-c) |
| 11. Armrest Rotation | 0° to 13° |
| 12. Bracket Adjustment | 0° to 16° |
