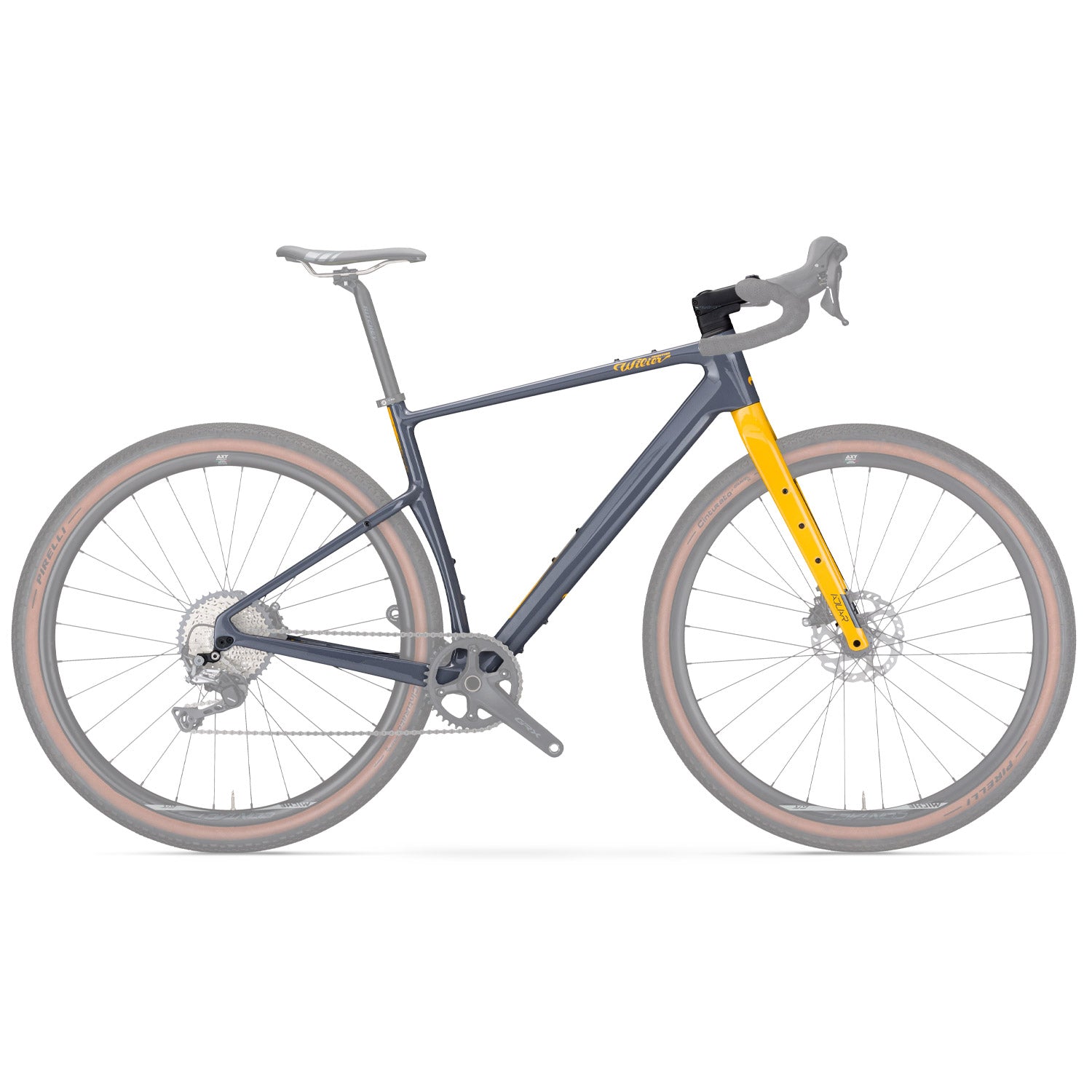

Adlar Grey/Yellow Frameset

Adlar is made for bikepacking, for explorers, for bike travellers. The structure of the carbon fibre frame has been reinforced to allow a maximum additional load of 35kg. This feature has been paired with new designs, a careful study of the geometries and completely integrated cable routing.

The frame weighs 1100g and comes in five sizes: XS, S, M, L, XL. The geometries derive from the mountain bike: the frame triangle develops horizontally, with a comfortable reach. This solutions make it possible to use a shorter handlebar stem that works in synergy with the open steering angle (70degrees). A transformation that translates into better handling and control on the more demanding trails with a fully loaded bike.

The front and back carriers load the weight of the bags onto the thru axles that pass through the frame and fork. This was done to reduce any structural stress on the Adlar. Other fixing points offer stability and the option of installing a third bottle holder or a tool bag under the down tube, in addition to a top tube bag.

Frame Specs

• Sizes: XS (44), S (47), M (50), L (52), XL (53), XXL (57)
• Compatible with disc brake groupsets

• Cable integration: Fully integrated
• Material: Carbon Monocque NHU-MOD
• Bottom bracket: BB86 86.5 x 41
• Headset: Fully Integrated  1" 1/4 - 1" 1/2" special bearings
• Tyre Clearance: Up to 52mm (2.0")

• Thru axles: 100/142mm x 12mm
• Mudguards: Applicable (Not included)
• Frame weight: 1100g

• Adventure Ready: Reinforced frame for carrying up to 35 kg of additional loa
• Generous Tyre Clearance: Accommodates tyres up to 2.00" (52mm)
• Geometry: Inspired by mountain bike design for superior handling and control
• Integrated Cables: No visible cables
