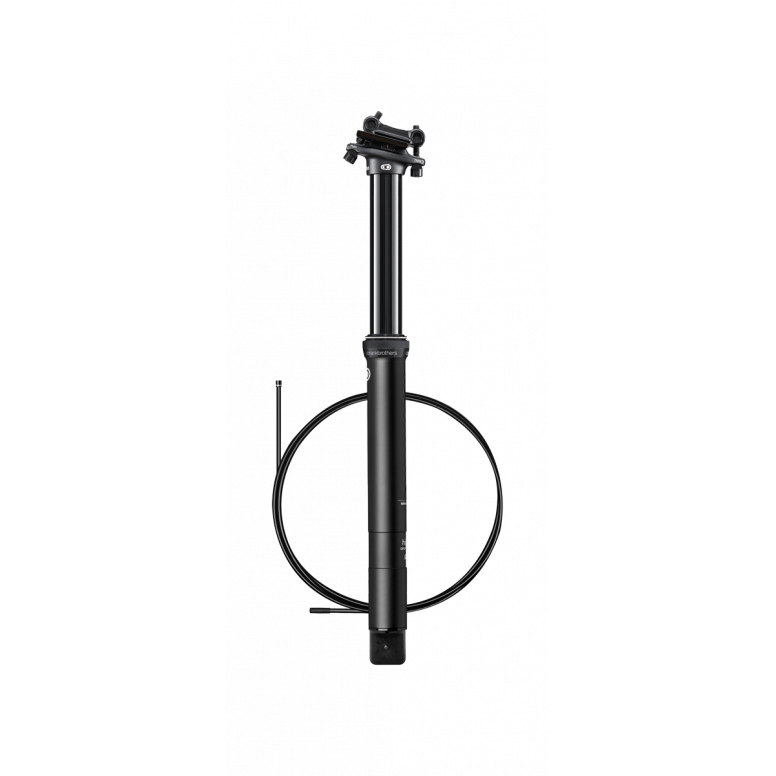

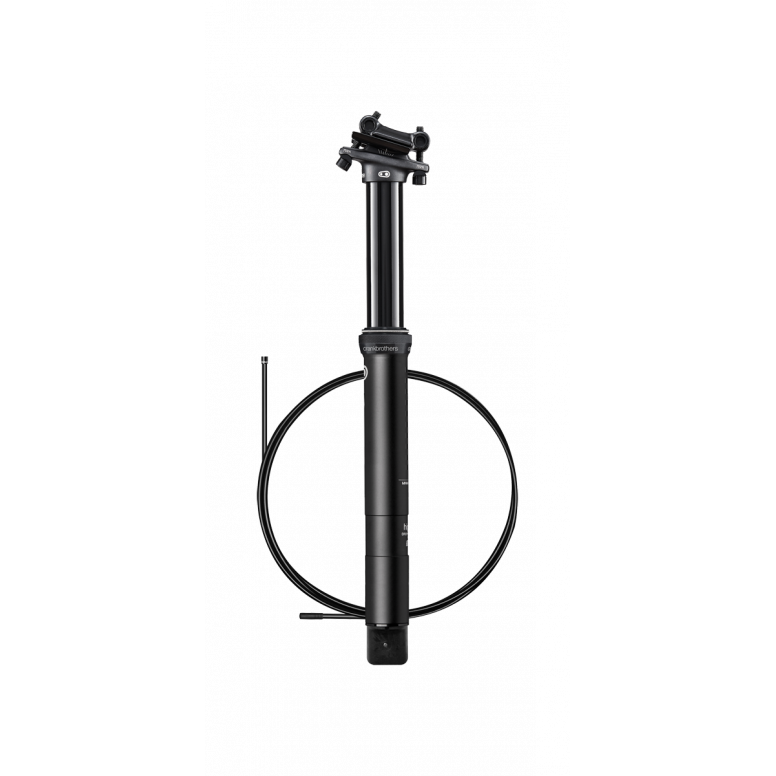

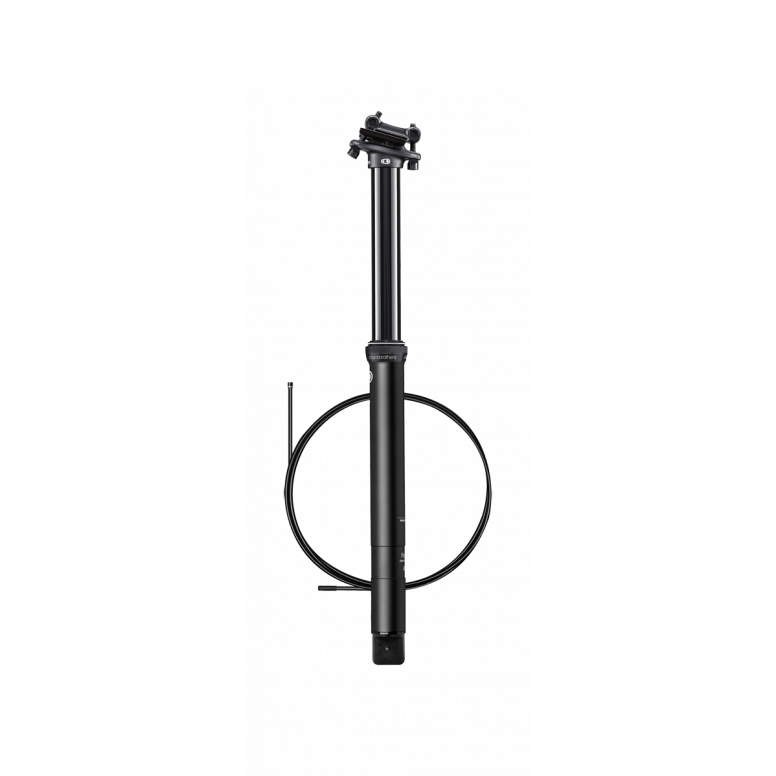

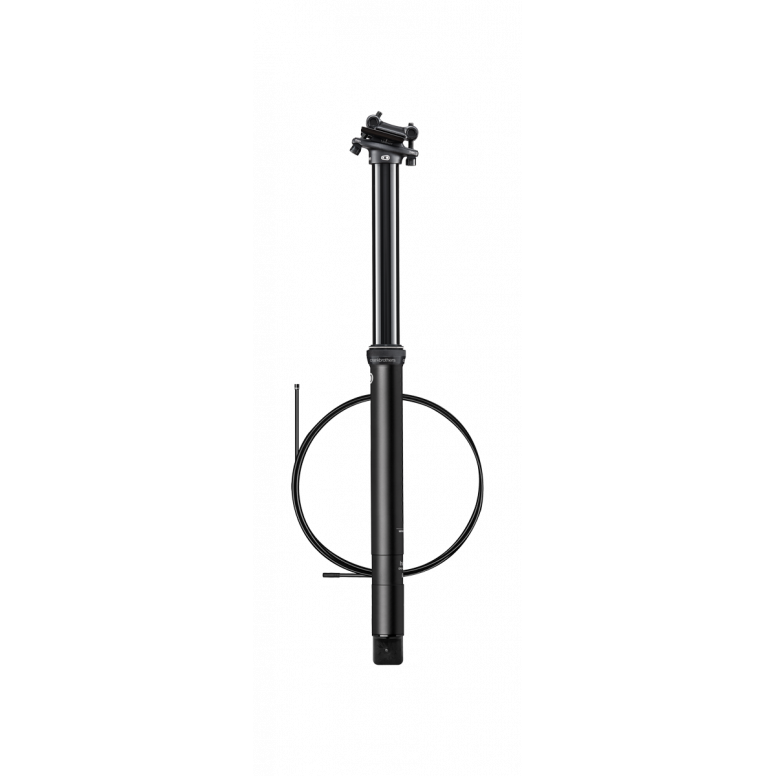

Highline 7

The all-new Highline delivers infinite adjustment, smooth feel, and easy installation for any bike.

Details

• Shorter insertion length to fit more bikes
• Premium Trelleborg® sealing
• Exclusive Igus® LL-glide bearings and keys
• Jagwire® cable and housing
• Self-contained IFP hydraulic cartridge
• Internal routing
• Quick connect mechanism for ease of cable installation
• Linear actuator for quick return speed
• 2-bolt quick-connect head
• Remote sold separately

Specifications

• Material: 7075-T6 aluminum
• Setback: 0
• Minimum stack height: 47mm
• Warranty 4 years

Specs 100mm;

• Max extended length: 237mm
• Max insertion length: 217mm
• Total post length: 367mm
• Weight: 475g (30.9), 490g (31.6)

Specs 125mm;

• Max extended length: 286mm
• Max insertion length: 242mm
• Total post length: 417mm
• Weight: 515g (30.9), 532g (31.6)

Specs 150mm;

• Max extended length: 336mm
• Max insertion length: 268mm
• Total post length: 467mm
• Weight: 551g (30.9), 572g (31.6)

Specs 170mm;

• Max extended length: 377mm
• Max insertion length: 287mm
• Total post length: 507mm
• Weight: 583g (30.9), 604g (31.6)

Specs 200mm;

• Max extended length: 450mm
• Max Insertion length: 327mm
• Total post length: 577mm
• Weight: 679g
