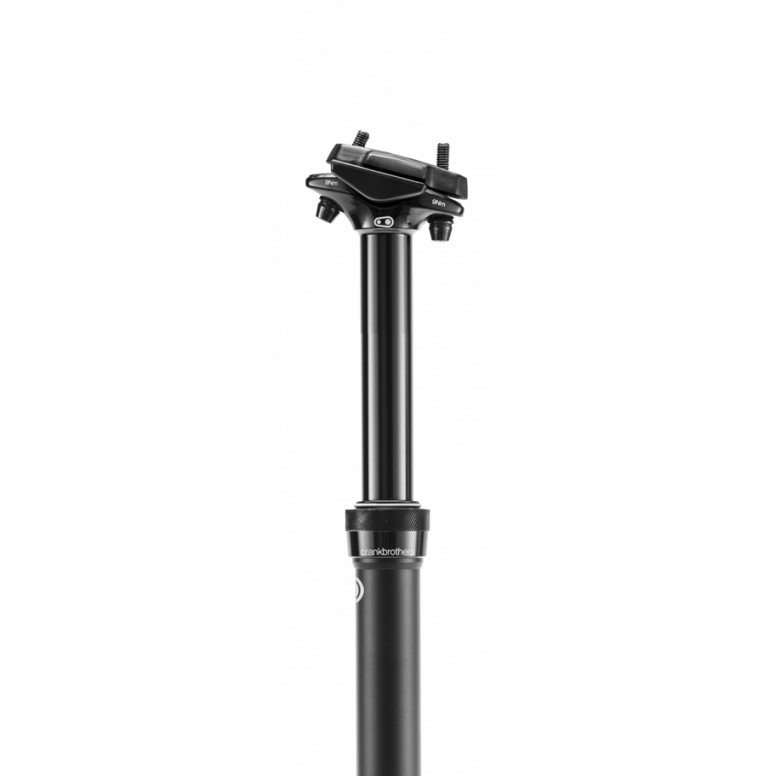

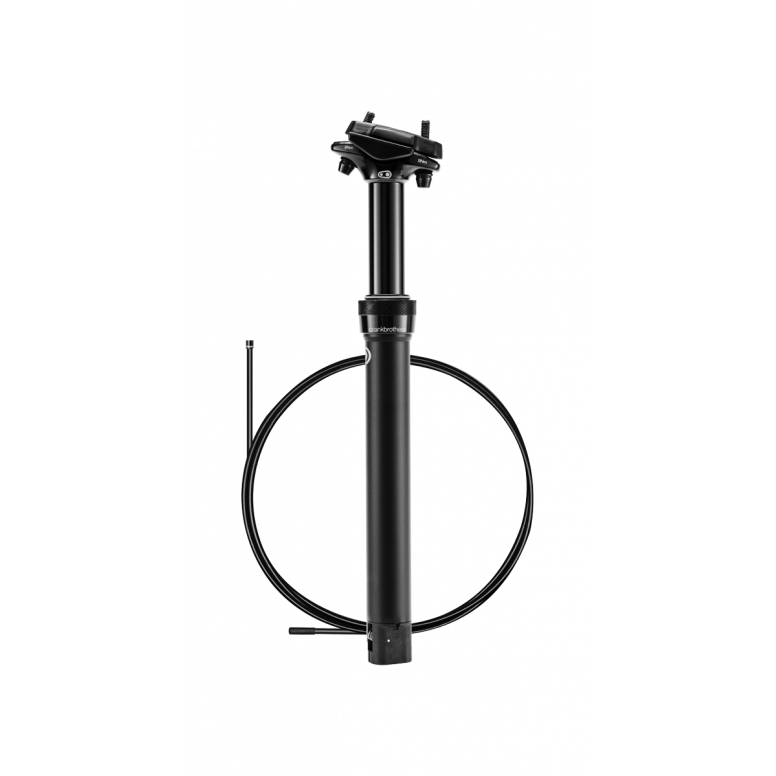

Highline XCG Short

The all-new Highline XC/Gravel delivers infinite adjustment, smooth feel, and easy installation.

• Short post length (max insertion length 174mm); also available in standard post length here
• 27.2mm seatpost diameter to fit most XC and gravel bikes
• Jagwire® cable and housing
• Self-contained IFP hydraulic cartridge
• Internal routing
• Quick connect mechanism for ease of cable installation
• Linear actuator for quick return speed
• 2-bolt standard head

Specifications

• Material: 7075-T6 aluminium
• Setback: 0
• Minimum stack height: 60mm
• Warranty 4 years

Specs 60mm;

• Max extended length: 170mm
• Max insertion length: 174mm
• Total post length: 297mm
• Weight: 369g (27.2)
