SCOTT Passage 10 Belt Wave - paradise green

SCOTT Passage 10 Belt Wave

Regular price: £3,699.00 GBP
Sale price: £3,699.00 GBP
Regular price

Tax included. Shipping calculated at checkout.

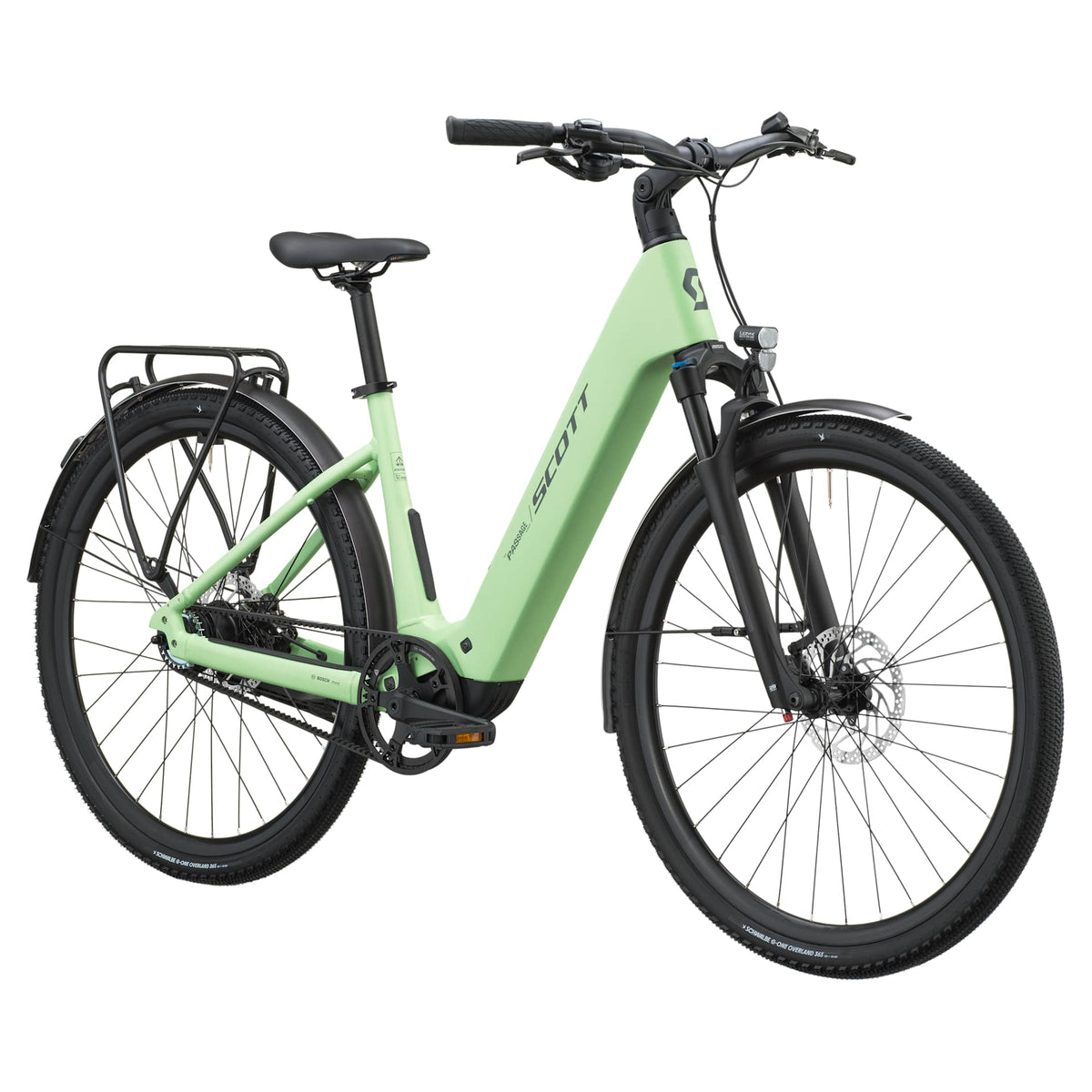

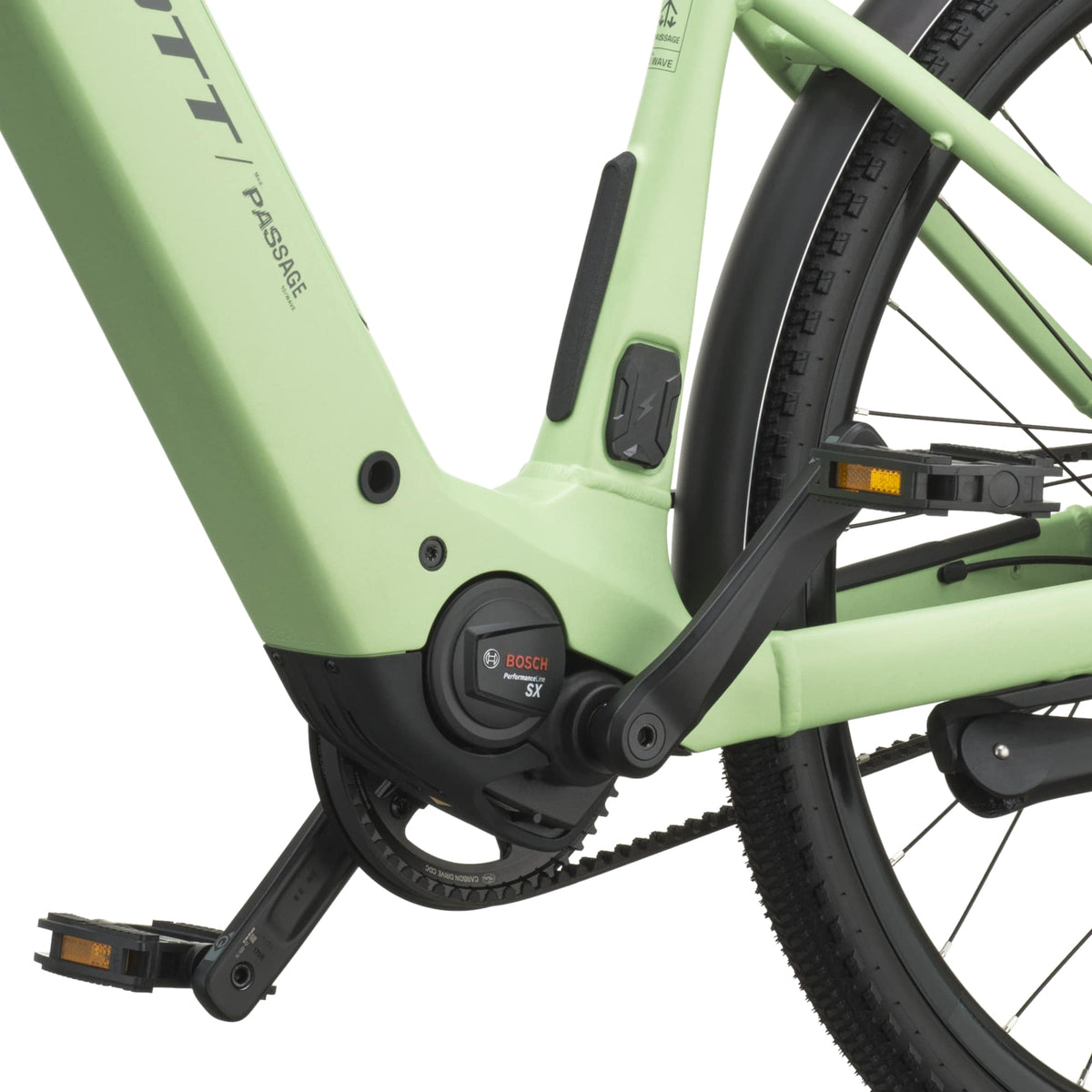

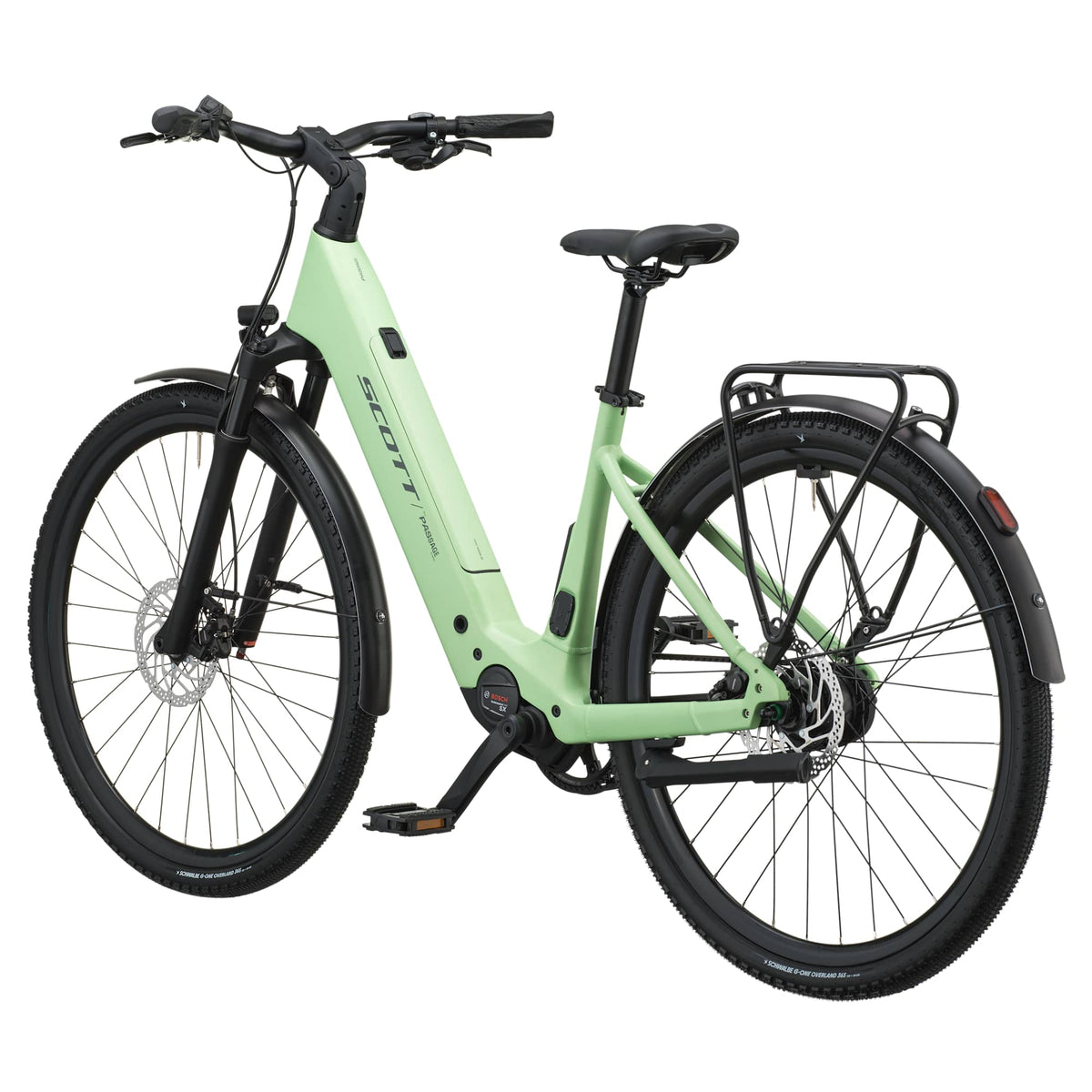

The SCOTT Passage 10 Belt Wave E-Bike is your ticket to easy, fun, city riding and low-maintenance living. Its frame shape allows for easy mounting and dismounting, while its trim build and sleek design perfectly house the lightweight Bosch Performance SX motor and a removable 400Wh battery. On the road, Passage looks and feels light and agile thanks to its balanced geometry and low center of gravity. The Bosch motor’s narrower design lets you enjoy a natural pedaling style, and when pavement gets rough, the 75mm suspension fork cushions each bump, keeping control smooth and steady.

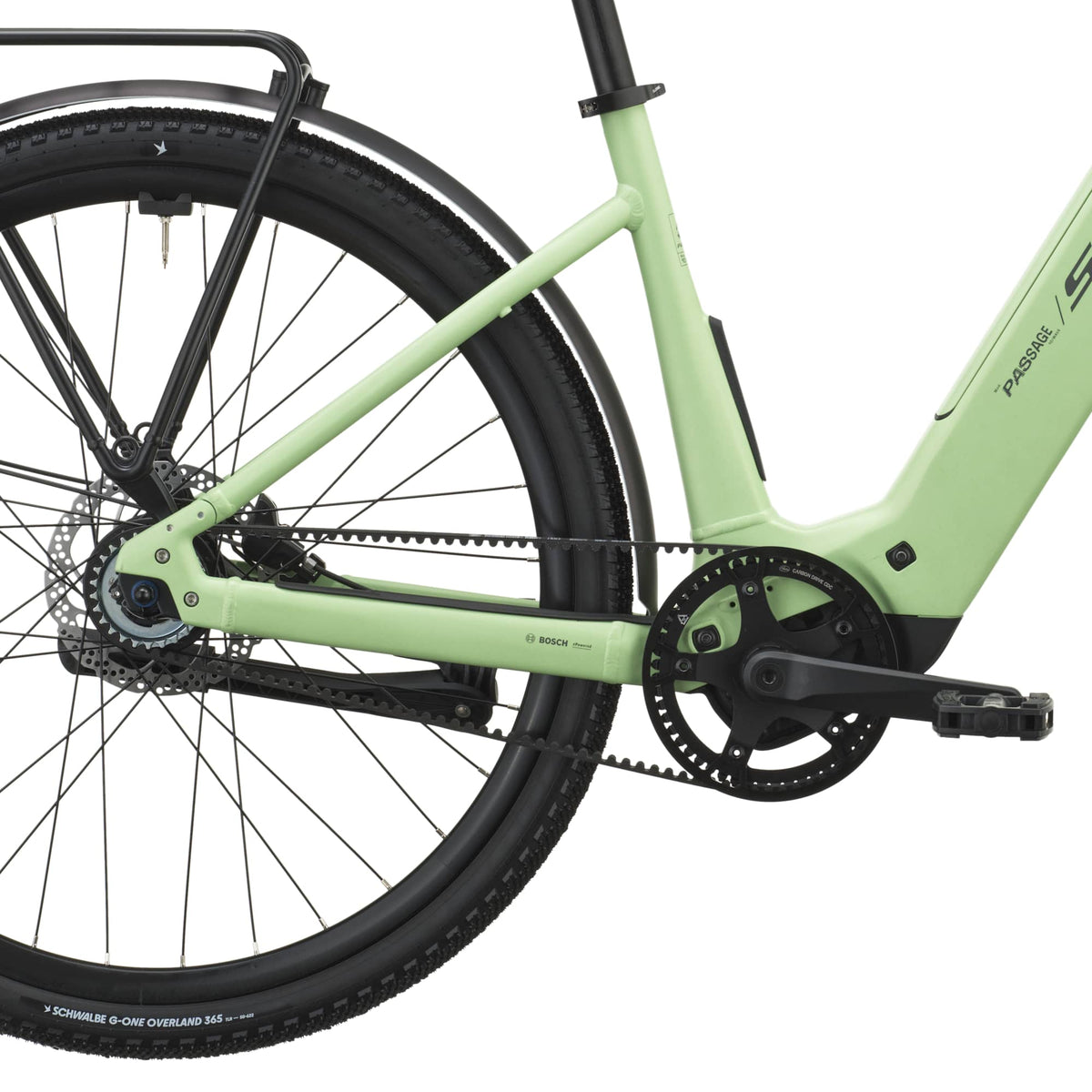

The Passage's belt drive stays cleaner than a traditional drivetrain, needs no lube, won't snag on clothing, and demands very little upkeep. So, enjoy worry-free E-Biking, and when you're ready to park the bike for the day, just swing out the kickstand. Along with its Wave design, additional practicality is built in: an adjustable stem lets you customize your fit for a relaxed, comfortable posture or a sportier riding position, while an integrated SP connection provides a secure spot for your phone and keeps navigation in view. The rear rack holds up to 20kg, giving you room for groceries and essentials.

Please note that bike specifications are subject to change without prior notice.

Highlights: SP Connect, Carrier 20Kg, 50x622 Tires, Adjustable Stem

Specification

Frame	Alloy S-XL=29", 6061 Alloy custom butted tubing, Top extraction battery
Travel	75mm
Fork	SR Suntour NRX32 E AIR LO
Drive Unit	Bosch Performance Line SX
Battery	Compact Tube 400Wh
Display	Bosch Purion 200
Charger	Bosch 2A Charger 230V
Rear Derailleur	Shimano Nexus 8 Speed Disc
Shifters	Shimano Alfine SL-S503 Rapid Fire Plus
Crankset	FSA CK 220 170mm
Chainring	Gates CDC 52T w/Guard
Chain	Gates CDC 125T
Cassette	Gates CDC 26T
Brakes	Shimano BR-MT201 2-Piston
Front Disc Rotor	Shimano SM-RT30 CL, 180mm
Rear Disc Rotor	Shimano SM-RT30 CL, 160mm
Grips	Urban Comfort
Handlebar	Syncros UC3.0 680mm, Rise 26mm, Backsweep 30°
H'stem	JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect
Seatpost	Syncros M3.0, 31.6mm, 350mm
Seat	Selle Royal Explora Athletic 155mm
Headset	Feimin, 28.8-56-62(39.8), Sealed Bearing, Alloy Cup
Front Hub	Shimano HBTC50015B CL, 15x100mm
Spokes	Stainless Black 13G
Front Rim	X15 Disc
Rear Rim	X15 Disc
Front Tire	Schwalbe G-One Overland 365 Perf, 700x50C
Rear Tire	Schwalbe G-One Overland 365 Perf, 700x50C
Front Light	Lezyne Hecto Pro STVZO E400
Rear Light	Supernova TL3Z
Rack	Racktime carrier Snapit 2.0 20Kg
Fender	Curana C-Lite 55
Pedals	Marwi SP-827
Extras	Hebie IC Kickstand
Approx weight in KG	22.5
Approx weight in LBS	49.6
Max. System Weight	130kg#The overall weight includes the bike, the rider, the equipment and possible additional luggage.

Ordered from SCOTT for you: we order this item from SCOTT UK when you place your order. If it shows as available, SCOTT currently has it in stock. We will email you to confirm your delivery date.
