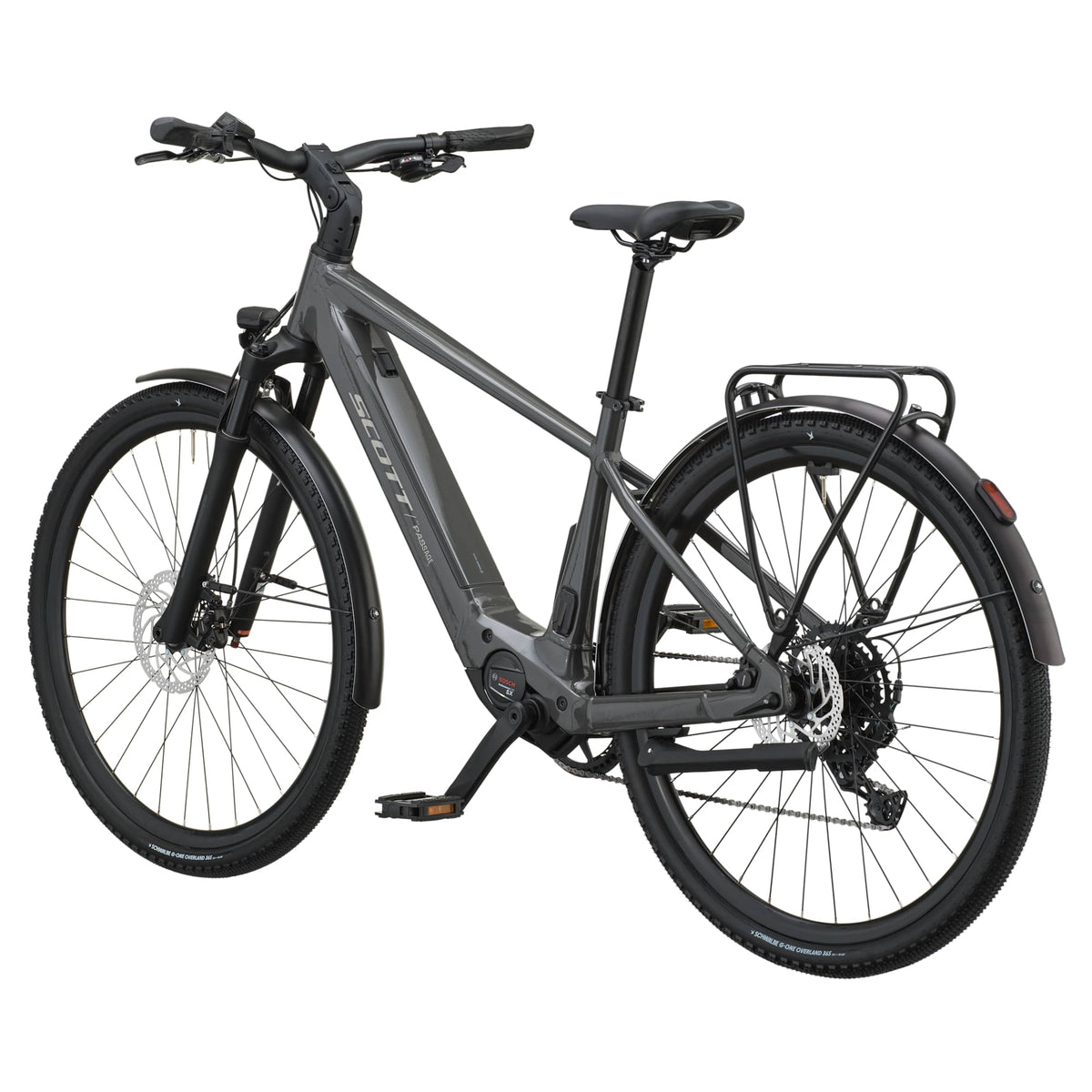

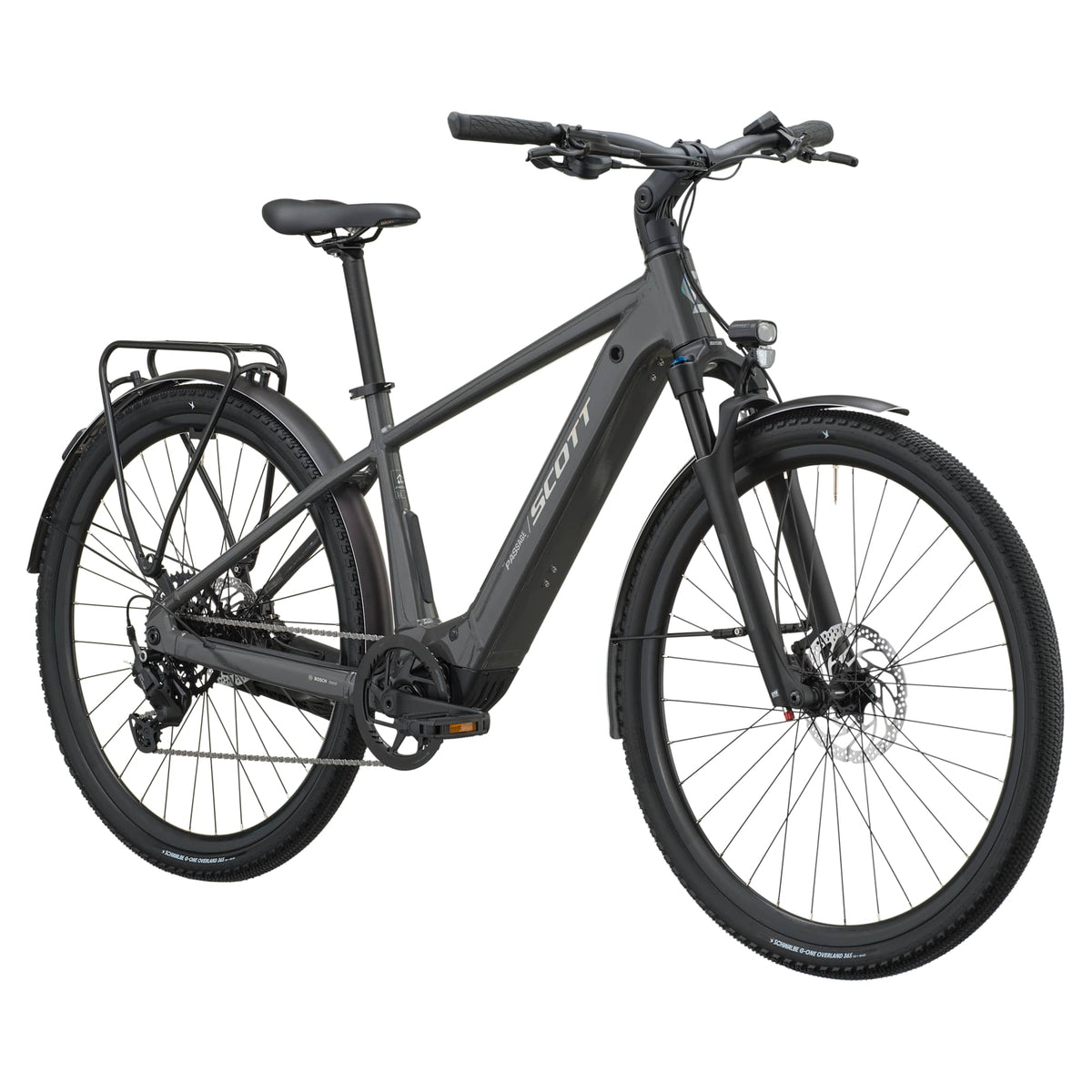

SCOTT Passage 20 (2027)

Regular price: £3,299.00 GBP
Sale price: £3,299.00 GBP
Regular price

Tax included. Shipping calculated at checkout.

The SCOTT Passage 20 E-Bike makes city riding feel natural and responsive. We crafted it with a trim build and sleek frame that perfectly houses the lightweight Bosch Performance SX motor and a removable 400Wh battery.

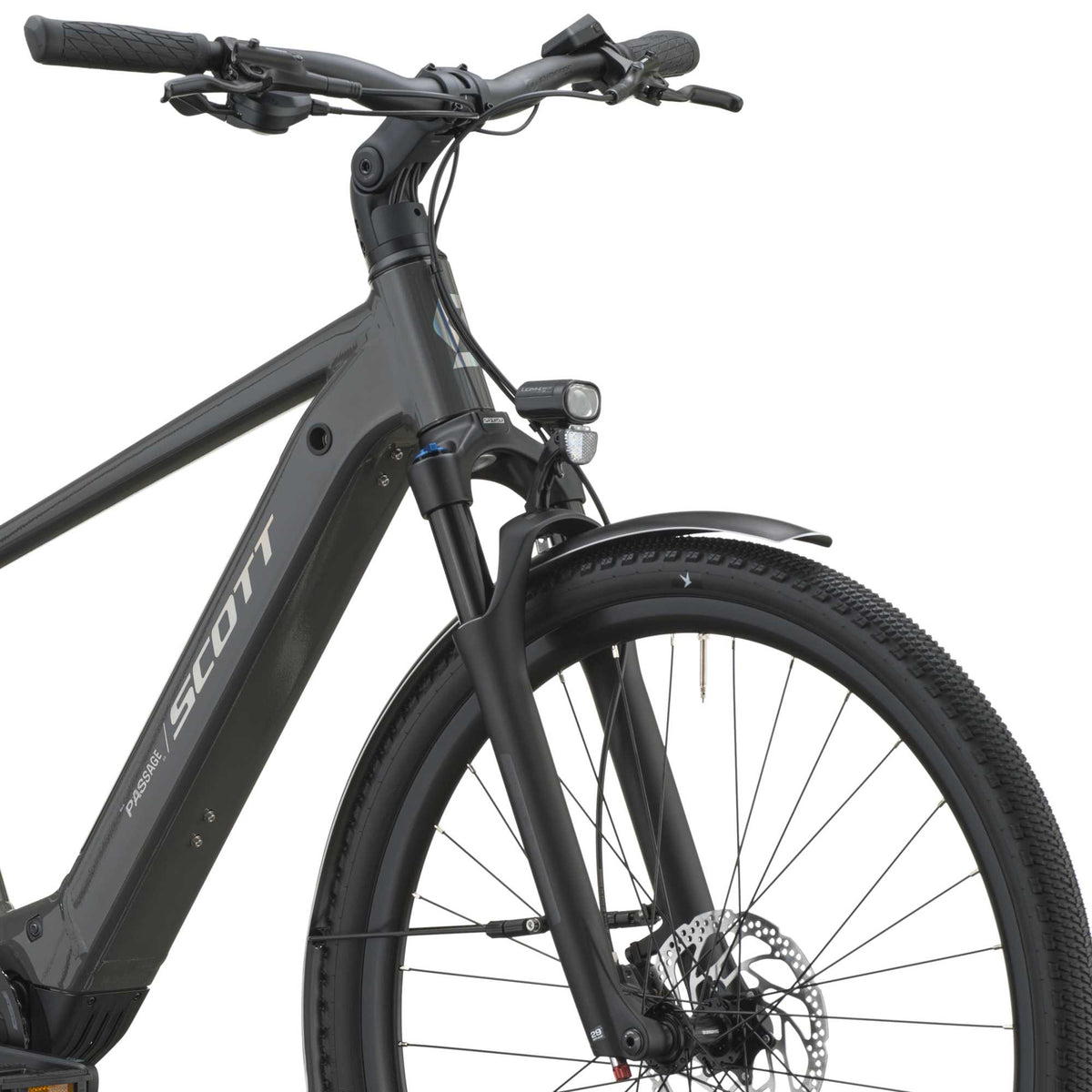

Combined, you'll have the handling you want for local rides and the range to take on everyday trips with confidence. Comfort is built in: a 75mm suspension fork softens rough pavement, 45mm tires add stability and durability, and a 9-speed drivetrain brings range for your terrain.

On the road, the Passage 20 accelerates smoothly and offers plenty of control. The trim frame and lightweight look and feel give it a nimble ride quality you can enjoy.

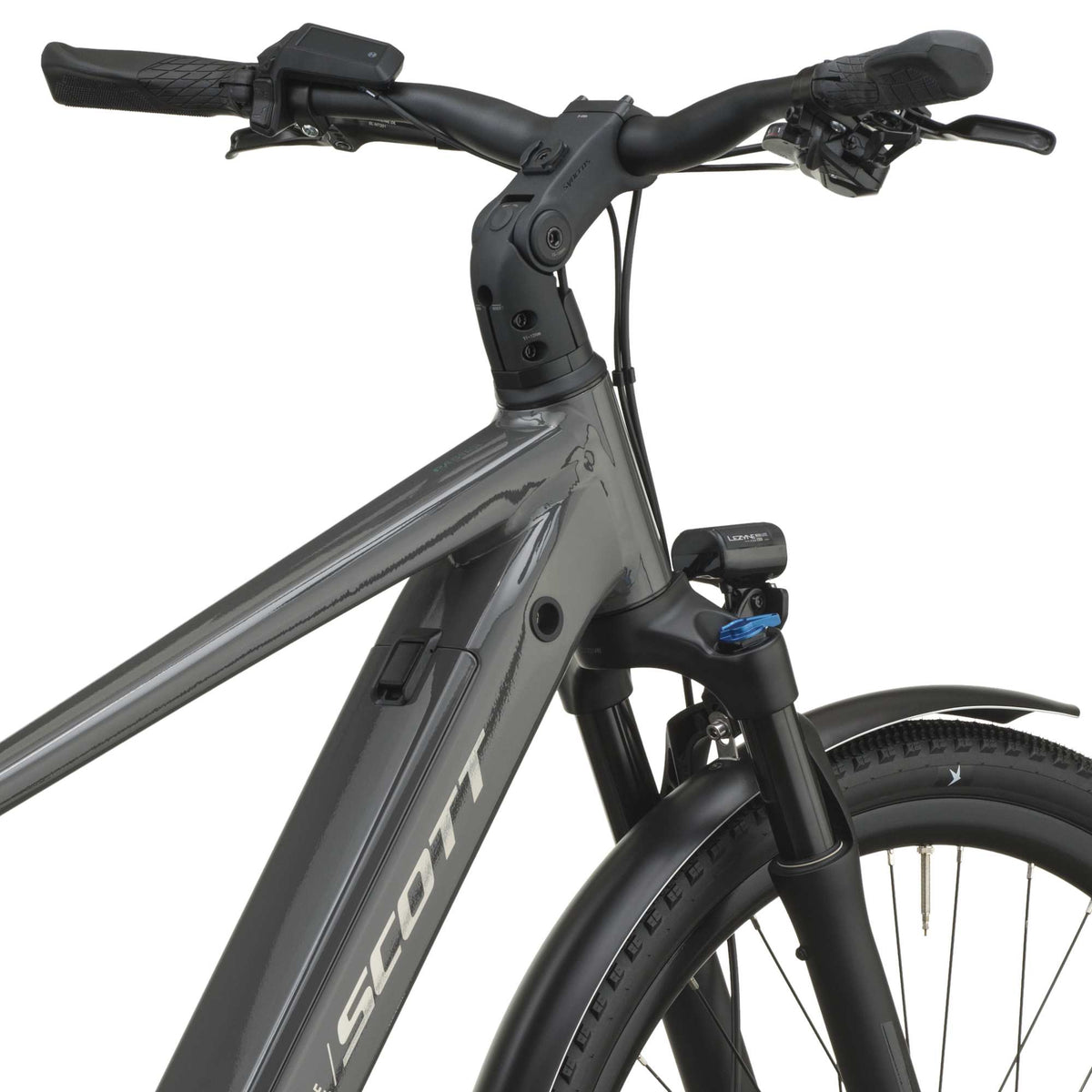

An adjustable stem lets you customize your riding position to suit your posture, and an integrated SP connection keeps your phone securely mounted and navigation in view.

A rear rack supports up to 20kg, making it easy to carry groceries and other essentials.

All these features come together in a sleek package that feels like a well‑balanced ride—just with a helpful electric boost when you want it.

Please note that bike specifications are subject to change without prior notice.

Highlights: SP Connect, Carrier 20Kg, Adjustable Stem, 50x622 Tires, XXL size

Specification

Frame	Alloy S-XXL=29", 6061 Alloy custom butted tubing, Top extraction battery
Travel	75mm
Fork	SR Suntour NRX32 E AIR LO

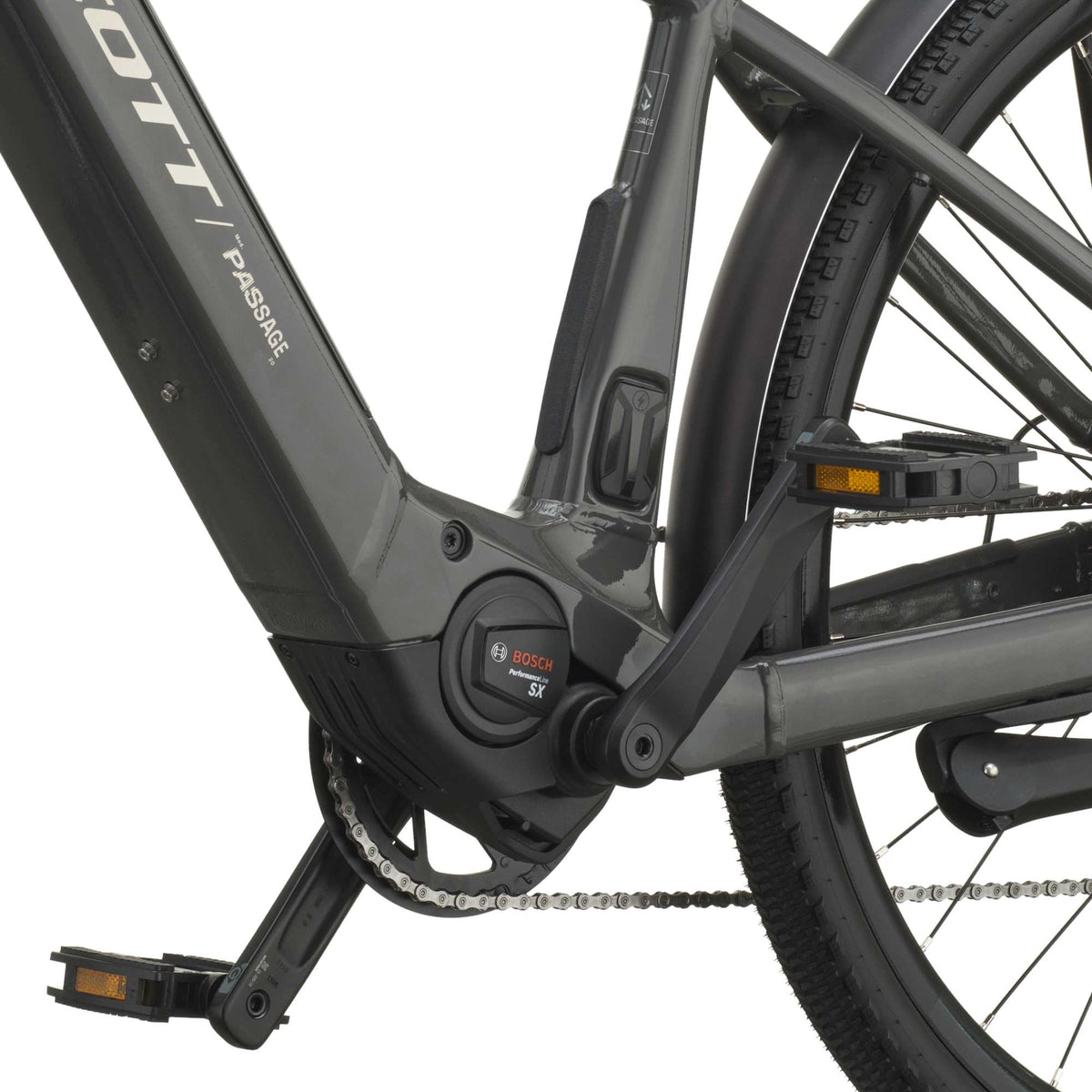

Drive Unit	Bosch Performance Line SX
Battery	Compact Tube 400Wh
Display	Bosch Purion 200
Charger	Bosch 2A Charger 230V

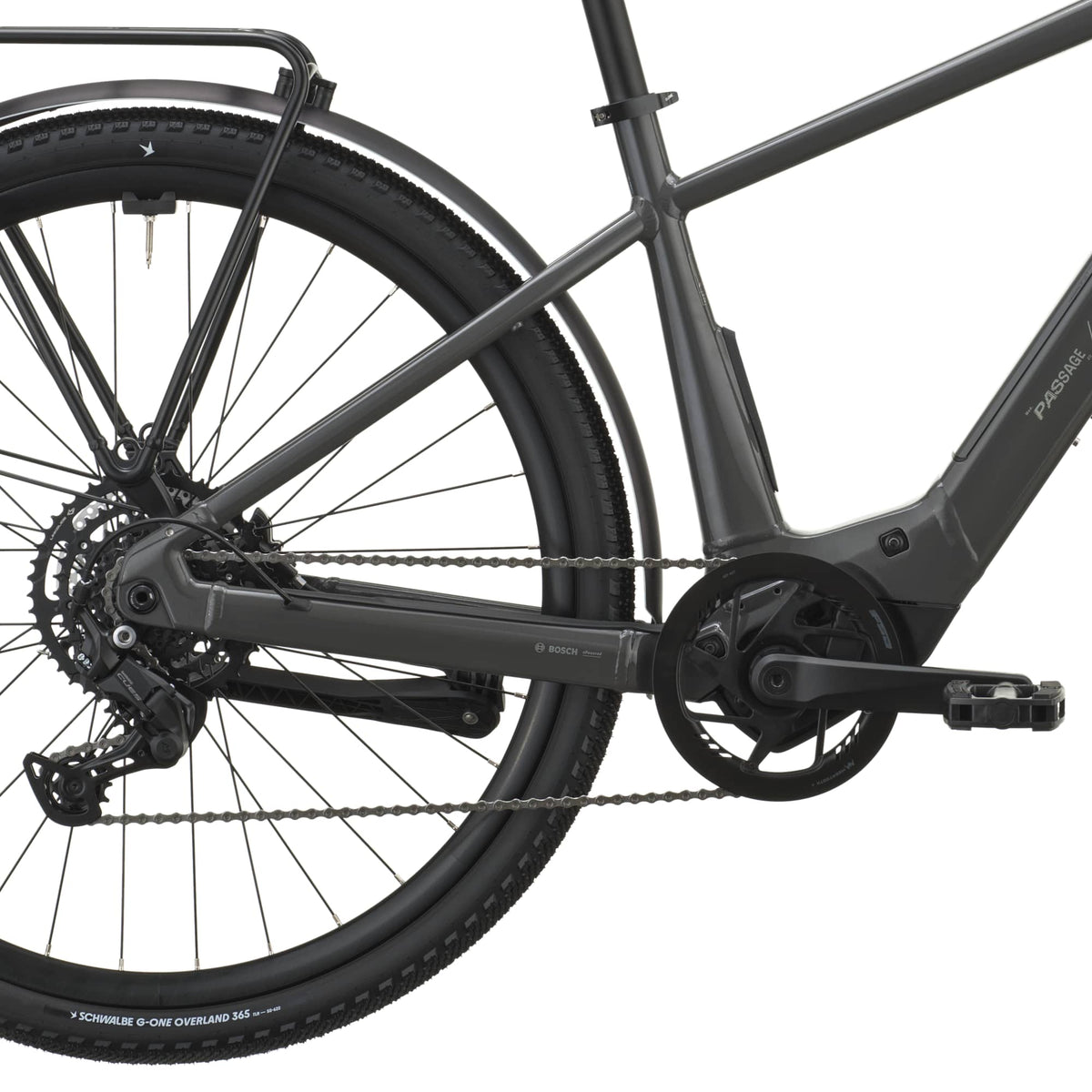

Rear Derailleur	Shimano Cues RD-U4000 9-Speed
Shifters	Shimano Cues SL-U4000 With Display
Crankset	FSA CK 220 170mm
Chainring	FSA 42T DM With Chainguard
Chain	Shimano CN-LG500
Cassette	Shimano Cues CS-LG300, 9-Speed 11-46T
Brakes	Shimano BR-MT201 2-Piston
Front Disc Rotor	Shimano SM-RT30 CL, 180mm
Rear Disc Rotor	Shimano SM-RT30 CL, 160mm
Grips	Urban Comfort
Handlebar	Syncros UC3.0 680mm, Rise 12mm, Backsweep 15°
H'stem	JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect

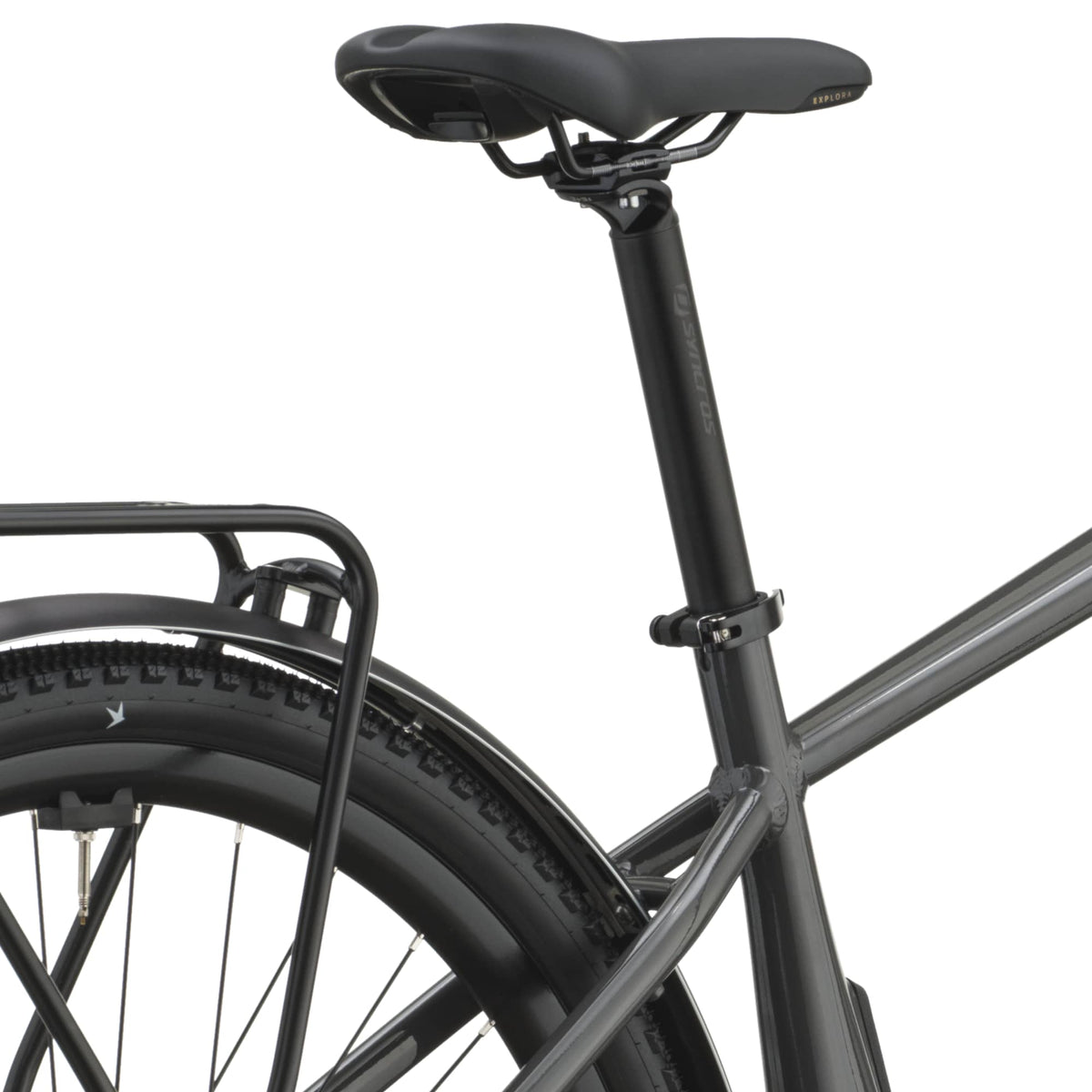

Seatpost	Syncros M3.0, 31.6mm, 350mm
Seat	Selle Royal Explora Athletic 155mm
Headset	Feimin, 28.8-56-62(39.8/30), H887 Bearing Cup
Front Hub	Shimano HBTC50015B CL, 15x100mm
Rear Hub	Shimano FH-TC500 142mm
Spokes	Stainless Black 13G
Front Rim	X15 Disc
Rear Rim	X15 Disc
Front Tire	Schwalbe G-One Overland 365 Perf, 700x50C
Rear Tire	Schwalbe G-One Overland 365 Perf, 700x50C
Front Light	Lezyne Mini Lite STVZO E350
Rear Light	Supernova TL3Z
Rack	Racktime carrier Snapit 2.0 20Kg
Fender	Curana C-Lite 55
Pedals	Marwi SP-827
Extras	Hebie IC Kickstand
Approx weight in KG	21.8
Approx weight in LBS	48.06
Max. System Weight	130kg#The overall weight includes the bike, the rider, the equipment and possible additional luggage.

Ordered from SCOTT for you: we order this item from SCOTT UK when you place your order. If it shows as available, SCOTT currently has it in stock. We will email you to confirm your delivery date.
