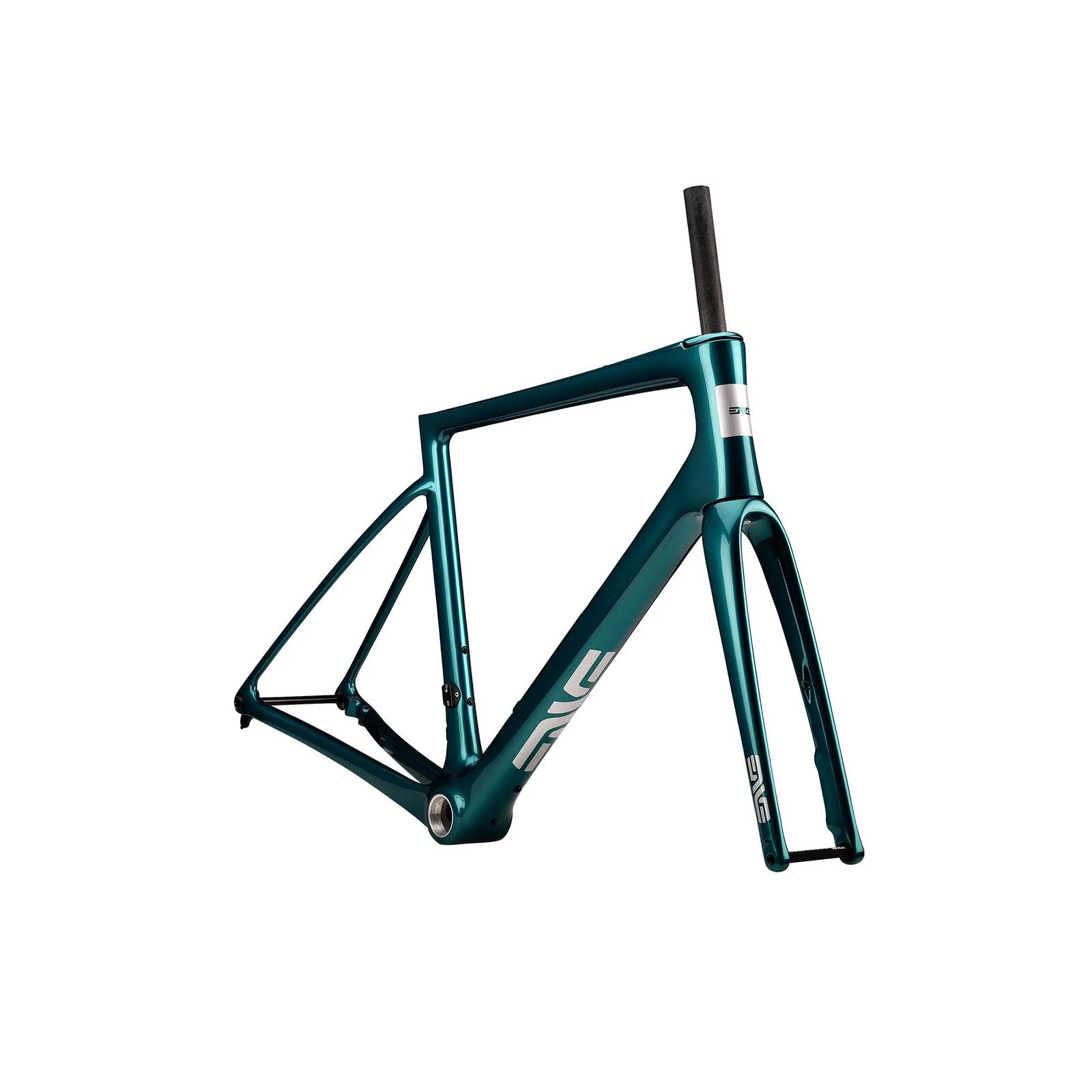

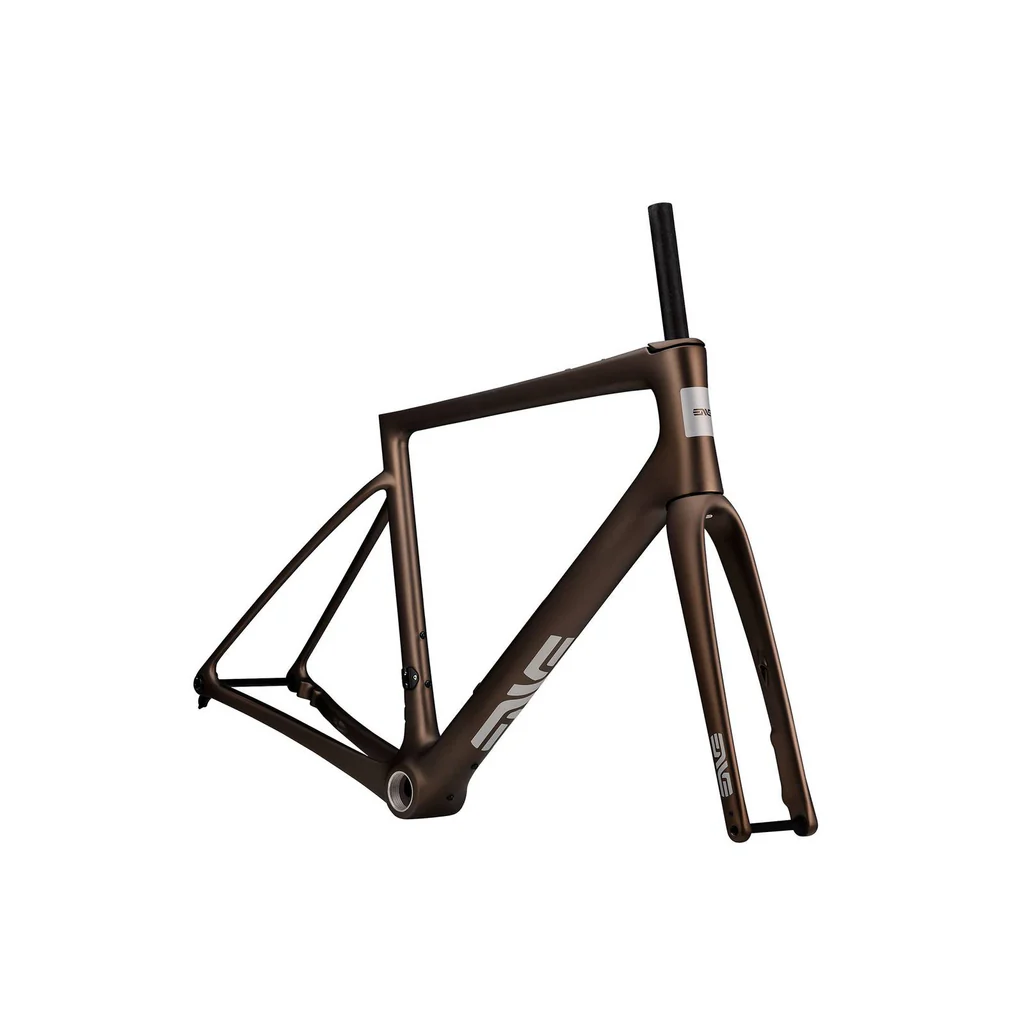

ENVE Fray Chassis
The ENVE Fray chassis is built for riders who demand uncompromising performance, versatility, and aerodynamic efficiency—whether tackling smooth tarmac or exploring mixed surfaces.
Crafted in Ogden, Utah using ENVE’s Material Optimised Design process, the Fray combines lightweight durability with the aerodynamic DNA of the Melee. Its performance road geometry is tuned for speed and comfort on long rides, optimised for 31–35mm tyres yet offering clearance up to 700x40mm (1x) or 700x38mm (2x) for more adventurous terrain.
Featuring ENVE’s In-Route System, all cables are internally routed for clean lines and minimal drag. Available in seven frame sizes with four fork rakes, the Fray ensures a perfect fit and balanced handling across the range.
Each chassis includes the frame, fork, headset, handlebar, stem, and seatpost, with à la carte options to tailor your setup. It’s compatible with most modern drivetrains, SRAM UDH, and a T47 threaded bottom bracket (not included). Practical touches like fender compatibility and support for ENVE’s Cargo Box and Bags make it as capable for endurance rides as it is for race day.
Tested at both 32kph (20mph) and 48kph (30mph), the Fray delivers proven aerodynamic performance and stability at speed. Each chassis is backed by ENVE’s 5-year Factory Limited Warranty and Incidental Damage Protection Programme, ensuring confidence in every ride.
Frame Material: ENVE M.O.D Carbon, 12x142mm Thru-Axle, Flat Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
Fork Material: ENVE M.O.D Carbon, 12x100mm Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible
Target Application: All-Road / Endurance / Mixed Surface / Sportif / Fondo
Sizes (cm): 47, 50, 52, 54, 56, 58, 60
Frame Weight: 900g ±2% (Size 56, Painted, No Hardware)
Headset: ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearings: 1.5″ IS52 Upper and Lower
Seatpost Diameter: ENVE Aero
Bottom Bracket Type: T47 Inboard Bearing
Brake Mount: Flat Mount
Front Axle: 12×100mm
Rear Axle: 12×142mm
Minimum Tire Size: 27mm
Optimal Tire Size: 31mm – 35mm
Maximum Tire Clearance (1x): 40mm
Maximum Tire Clearance (2x): 38mm
In-Frame Storage: Yes – includes 2 storage bags (18.22cc each)
Frame Routing: Internal
Water Bottle Mounts: 3
Top Tube Mounts: Yes
Fender Compatibility: Yes
Wheel Size: 700c
