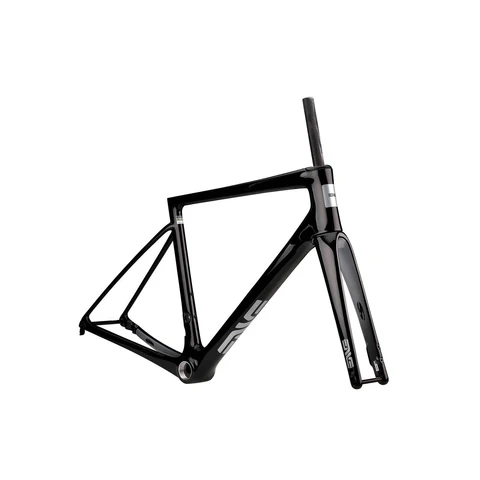

ENVE Melee Chassis
The ENVE Melee is designed with the future of road cycling in mind. Built around the key attributes of aerodynamics and responsive handling, its race-ready frame maximises the natural durability, stiffness, and compliance of carbon fibre.
Crafted by ENVE’s expert team in Ogden, Utah, the Melee reflects their philosophy of designing and building the bikes they want to ride. Every frame embodies ENVE’s deep expertise in carbon engineering — focusing as much on the meticulous crafting process as on the performance of the material itself.
To meet the demands of modern racing, the Melee is engineered for exceptional durability and stiffness while maintaining comfort and compliance where it matters most. ENVE achieves this through continuous carbon fibre layups, zone-specific layering, and tapering the laminate to deliver strength and efficiency while reducing excess weight.
Finished in a striking Damascus colourway, the Melee combines beauty with performance. Using ENVE’s Real-World Fast aero design principles — the same technology found in their SES wheel line — the frame delivers aerodynamic efficiency tuned for realistic riding speeds. Tested both in the lab and on the road at 32kph (20mph) and 48kph (30mph), the Melee offers a proven aerodynamic edge and stability at speed.
Designed to perfectly complement ENVE’s SES wheel range, the Melee’s tubeset shapes are optimised to reduce drag and improve handling. Whether you’re chasing seconds in a triathlon, climbing mountain passes, or competing on mixed road surfaces, the Melee delivers unmatched performance and adaptability.
Optimised around 27–31mm tyres for aerodynamic performance, the Melee can accommodate up to a 35mm tyre, allowing you to tailor your setup for smooth tarmac or rougher roads. Available in seven sizes and with five fork rakes, the Melee provides precision fit and responsive handling across the entire size range.
The Melee uses a threaded T47 inboard bearing for smooth operation and is compatible with a wide range of drivetrain options — from Shimano mechanical to all wired or wireless electronic groupsets, in both 1x and 2x configurations.
The fully integrated front end routes hoses and wires internally between the 1.5" upper bearing and 1.125" steerer tube. Pairing the Melee with the ENVE Road Stem and SES AR Handlebar achieves a sleek, cable-free look that minimises wind disturbance.
Its dedicated ENVE Aero seatpost features a wind-cheating Kammtail profile and ENVE’s patented twin-bolt saddle clamp design, available in three lengths with either 0 or -20 degree offset.
Thoroughly tested by ENVE’s team of passionate riders, the Melee delivers real-world performance, exceptional stiffness, and ride comfort. With fender compatibility and ENVE’s 5-year Factory Limited Warranty plus Incidental Damage Protection, the Melee is built to perform and endure — wherever your ride takes you.
Key Features
Designed for modern racing and real-world speed
Built using ENVE’s aerodynamic and carbon expertise
Durable, stiff, and compliant for race-ready performance
7 frame sizes with 5 fork rakes for precise fit and handling
Tyre clearance up to 35mm (optimised for 27–31mm)
Compatible with most drivetrains (1x and 2x)
Includes handlebar, stem, and seatpost (configurable options)
5-year Factory Limited Warranty and Incidental Damage Protection
Technical Specifications
Frame: ENVE M.O.D Carbon, 12x142mm Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
Fork: ENVE M.O.D Carbon, 12x100mm Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible
Target Application: Road Race / Performance
Sizes (cm): 47, 50, 52, 54, 56, 58, 60
Fork Rake (mm): 55, 51, 47, 43, 39
Frame Size / Fork Rake: 47cm / 55, 50cm / 51, 52cm / 47, 54cm / 47, 56cm / 43, 58cm / 43, 60cm / 39
Frame Weight: 850g ±2% (Size 56, Painted, No Hardware)
Headset: ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearings: 1.5″ IS52 Upper and Lower
Seatpost Diameter: ENVE Aero
Bottom Bracket Type: T47 Inboard Bearing
Brake Mount: Flat Mount
Front Axle: 12×100mm (Total Length: 122, TP:1.5, TL:15)
Rear Axle: 12×142mm (Total Length: 168, TP:1.0, TL:14)
Minimum Tyre Size: 25mm
Optimal Tyre Size: 27–32mm
Maximum Tyre Size: 35mm
In-Frame Storage: N/A
Frame Routing: Internal
